188 Upgrade and Maintenance Manual TX100 S3 Core Edition
Front panel and external connectors
13.2.6 Installing the new front USB board

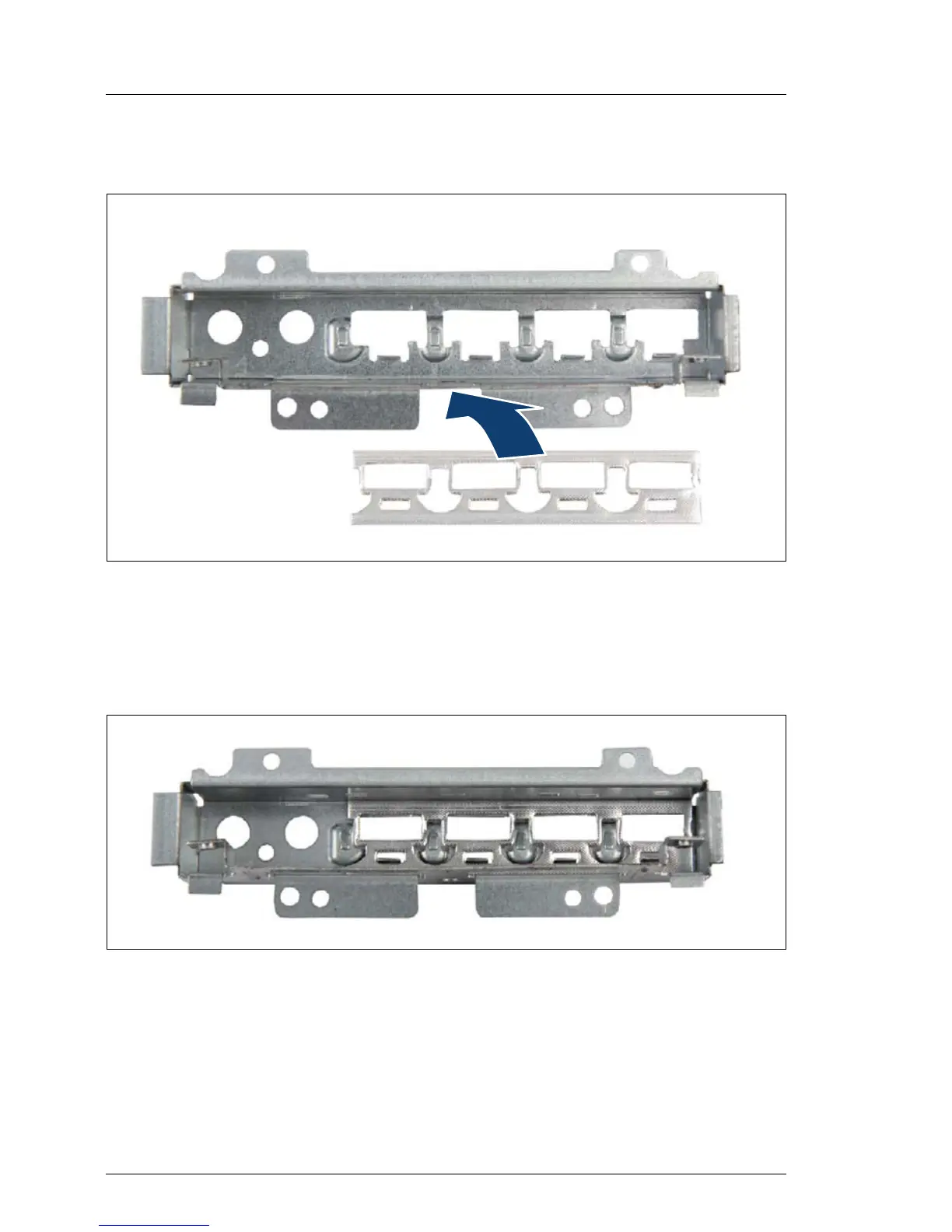

Figure 121: Installing the gasket in the carrier
Ê If applicable, insert the gasket into the carrier.
I Ensure that the gasket matches the recesses on the carrier.
Figure 122: Gasket installed in the carrier
