16.3.1.2 Onboard settings

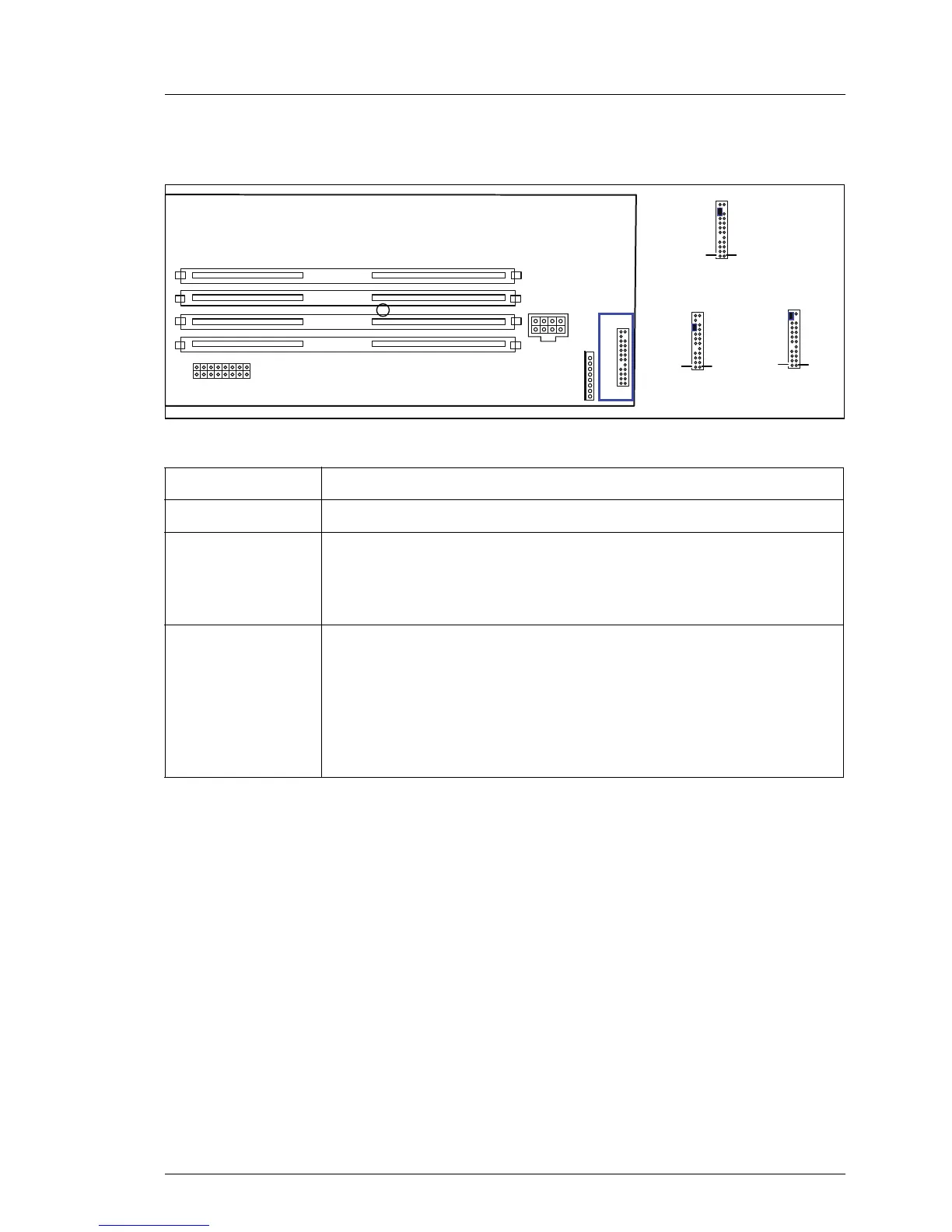

Figure 157: Jumper
I When the CMOS battery is removed from the system board, the
password set by the customer is kept and CMOS settings are restored
except for date and time.
Setting Description
Default Password skip disabled and recovery BIOS disabled.
PWD Skip Password skip enabled.
The password is deleted and the default BIOS settings are
applied after “PWD Skip” jumper was set once.
RCVR Recovery BIOS enabled.
Use this function only if the system BIOS is destroyed.
After flashing a new Recovery BIOS from a memory stick
the password and all configuration settings are set to
default.
POWER1
DIMM2A
DIMM1A
DIMM2B
DIMM1B
Front panel
SATA
PWR
PC2009
Temp. Sensor
Default
PWD Skip
RCVR
POWER
Pin 1
Pin 1
Pin 1
Pin 2
Pin 2
Pin 2
