Cabling
15.2.3 Disconnecting / connecting the power cable

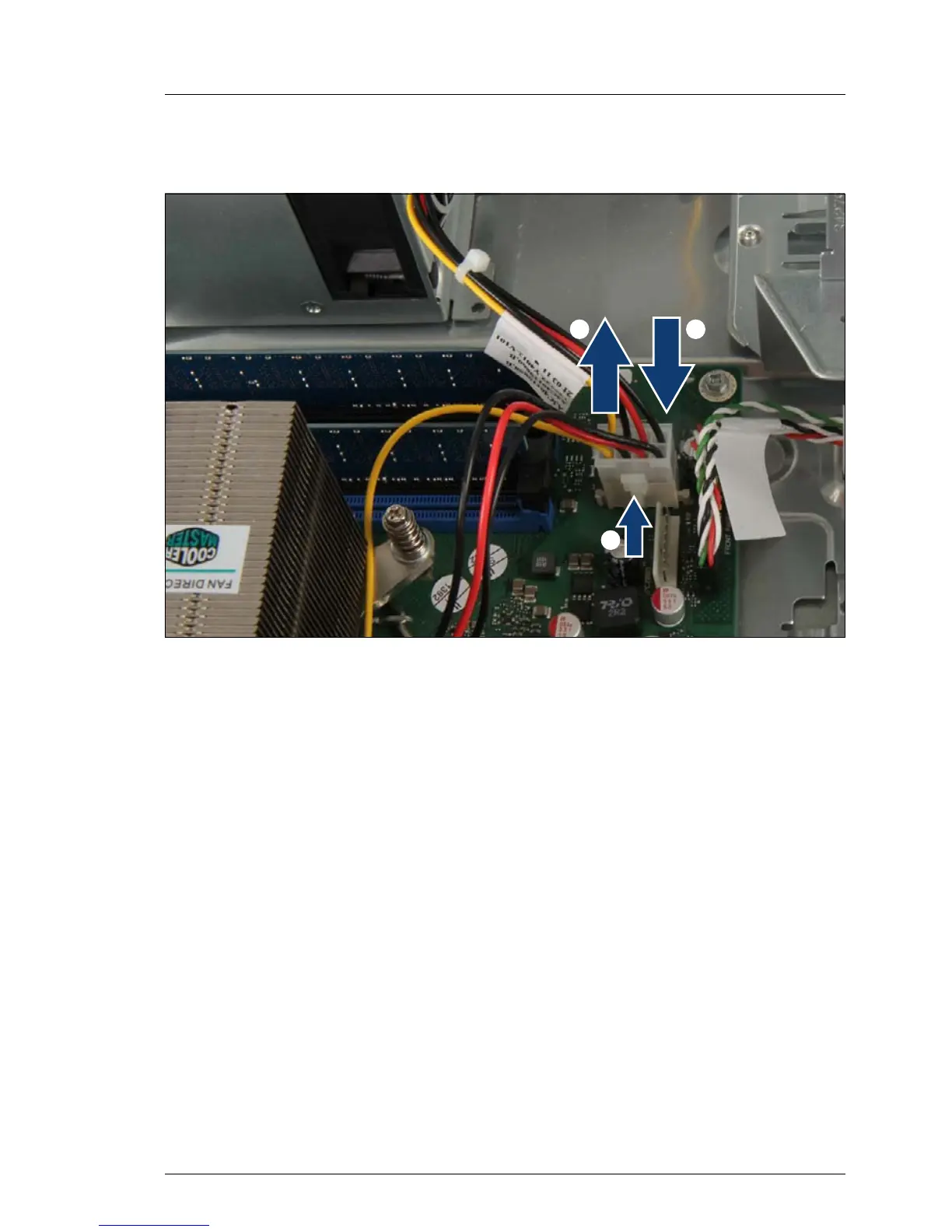

Figure 147: Disconnecting/reconnecting the power cable on the system board
Ê While pressing the release latch on the connector (1), disconnect the
defective power cable from the SATA POWER connector on the system
board (2).
Ê Connect the new power cable on the SATA POWER connector on the
system board (3).
/
