210 Upgrade and Maintenance Manual TX100 S3 Core Edition
System board and components

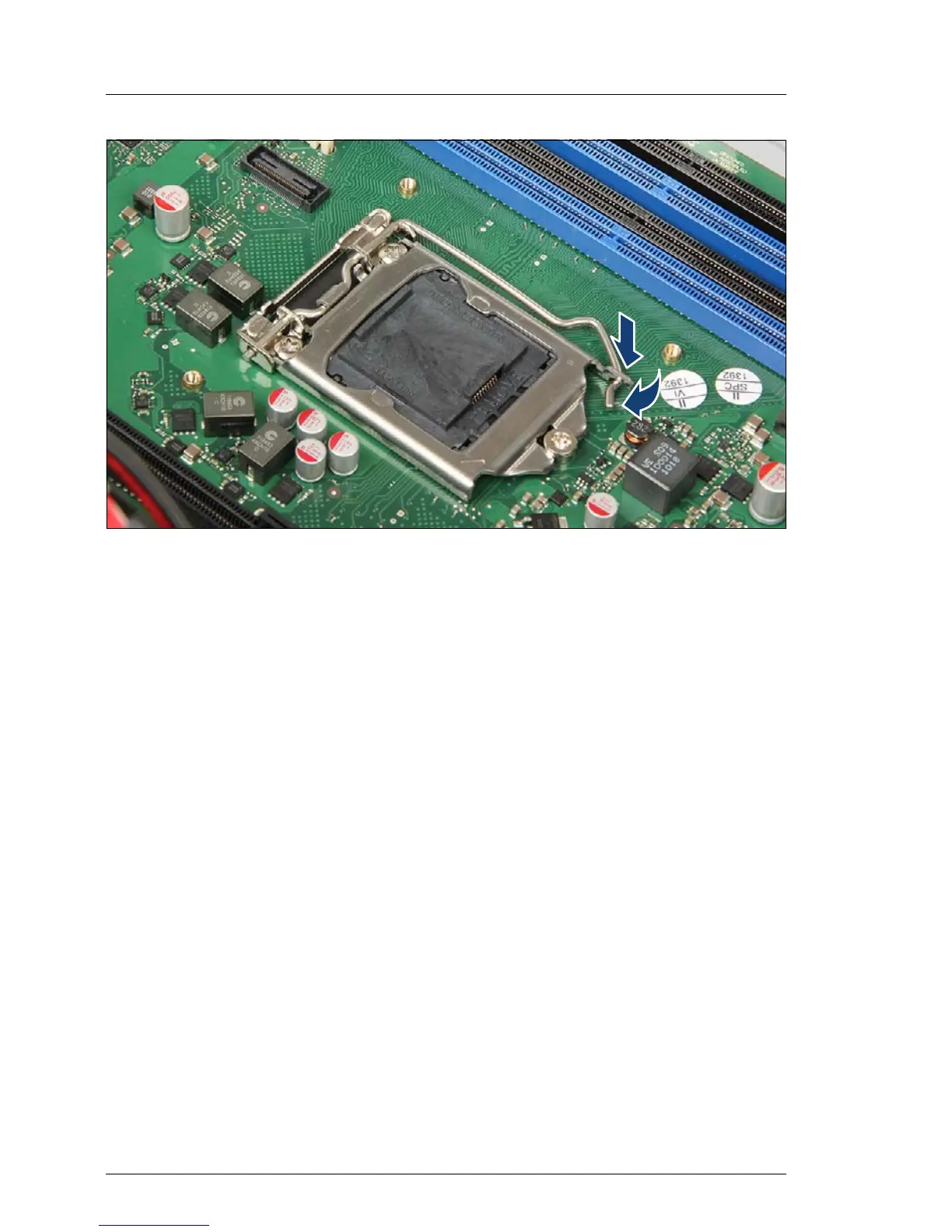

Figure 139: Installing the protective socket cover (defective system board) (C)
Ê Latch the socket lever under the load plate tab.
14.2.1.5 Concluding steps
Ê Reconnect all cables to the system board. For a complete cabling overview,
please refer to section "Cabling overview" on page 218.
Ê Reinstall all remaining system board components as shown in the related
sections:
– Heat sinks: refer to section "Installing the processor heat sink" on
page 142
– Memory modules: refer to section "Installing a memory module" on
page 123
I Install all memory modules into their original slots.
Ê Install the HDD cage as described in section "Installing the HDD cage" on
page 62.
Ê Close the side cover as described in section "Installing the side cover" on
page 56.
Ê Reconnect all external cables.
