114 Upgrade and Maintenance Manual TX100 S3 Core Edition
System fan modules
8.2.4 Installing the system fan module 2

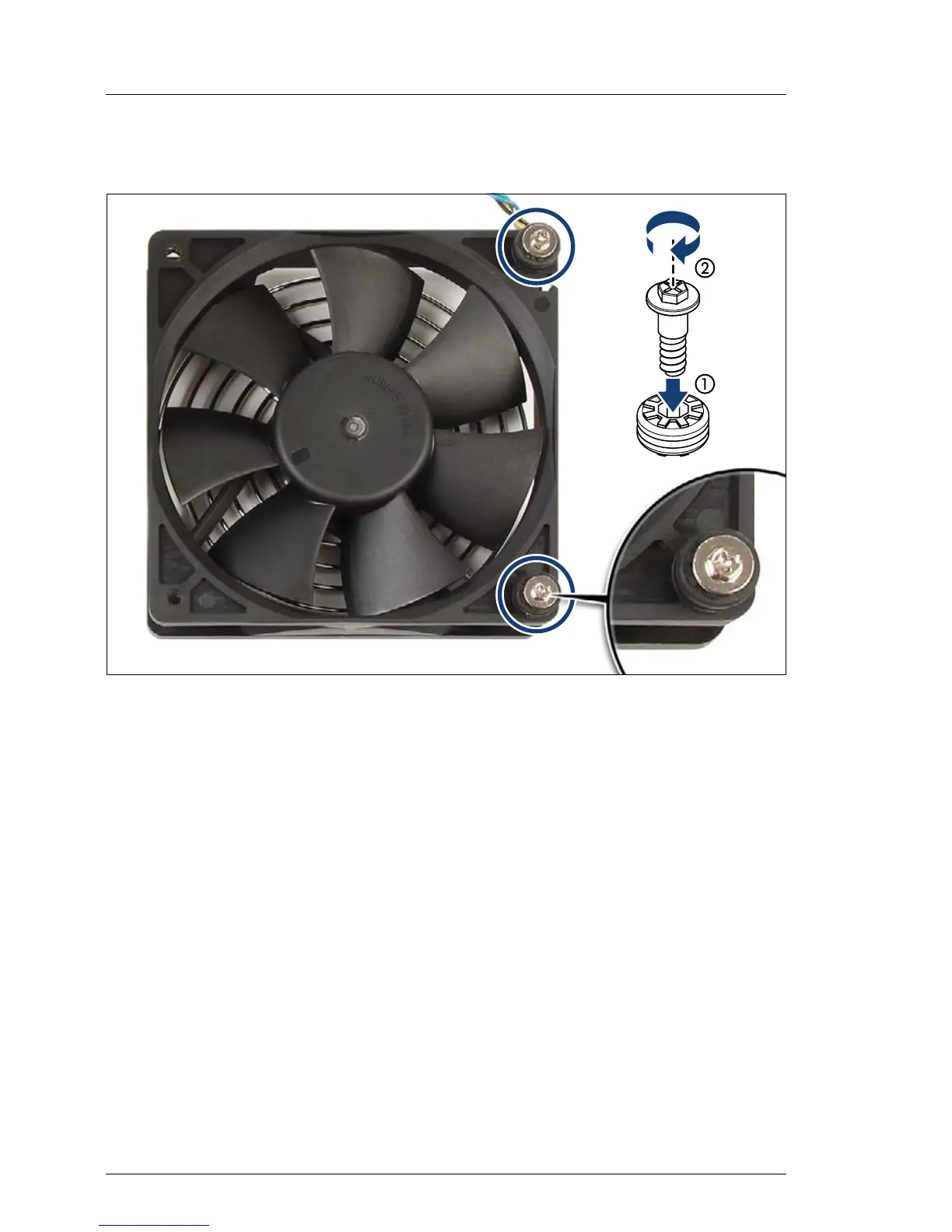

Figure 62: Installation of the bushings
Ê Place the two fan bushings (C26361-K1015-C29) on the fan (1, see circles).
Ê Secure each fan bushing on the fan with one fan screw (C26361-K1015-
C98) (2).
