Fujitsu PRIMERGY TX100 S3 Core Edition Upgrade And Maintenance Manual

TX100 S3 Core Edition Upgrade and Maintenance Manual 115
System fan modules

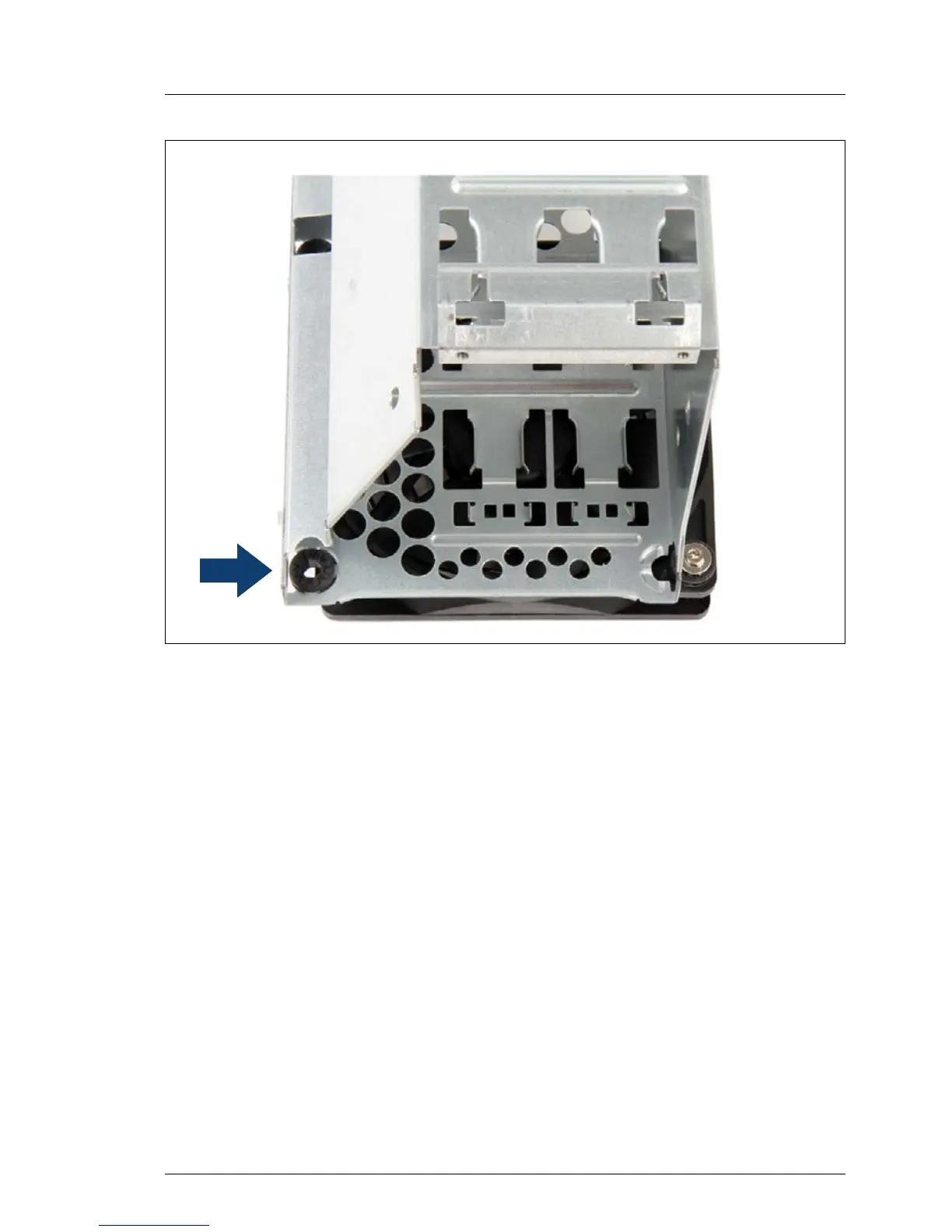

Figure 63: Pushing the HDD cage over the system fan module 2
Ê Slide the HDD cage in the direction of the arrow as far as it will go.
I Check the correct position of the bushings.
Ensure that the bushings are not displaced while sliding in the HDD
cage.
