Basic hardware procedures
4.4.3 Installing the backup drive

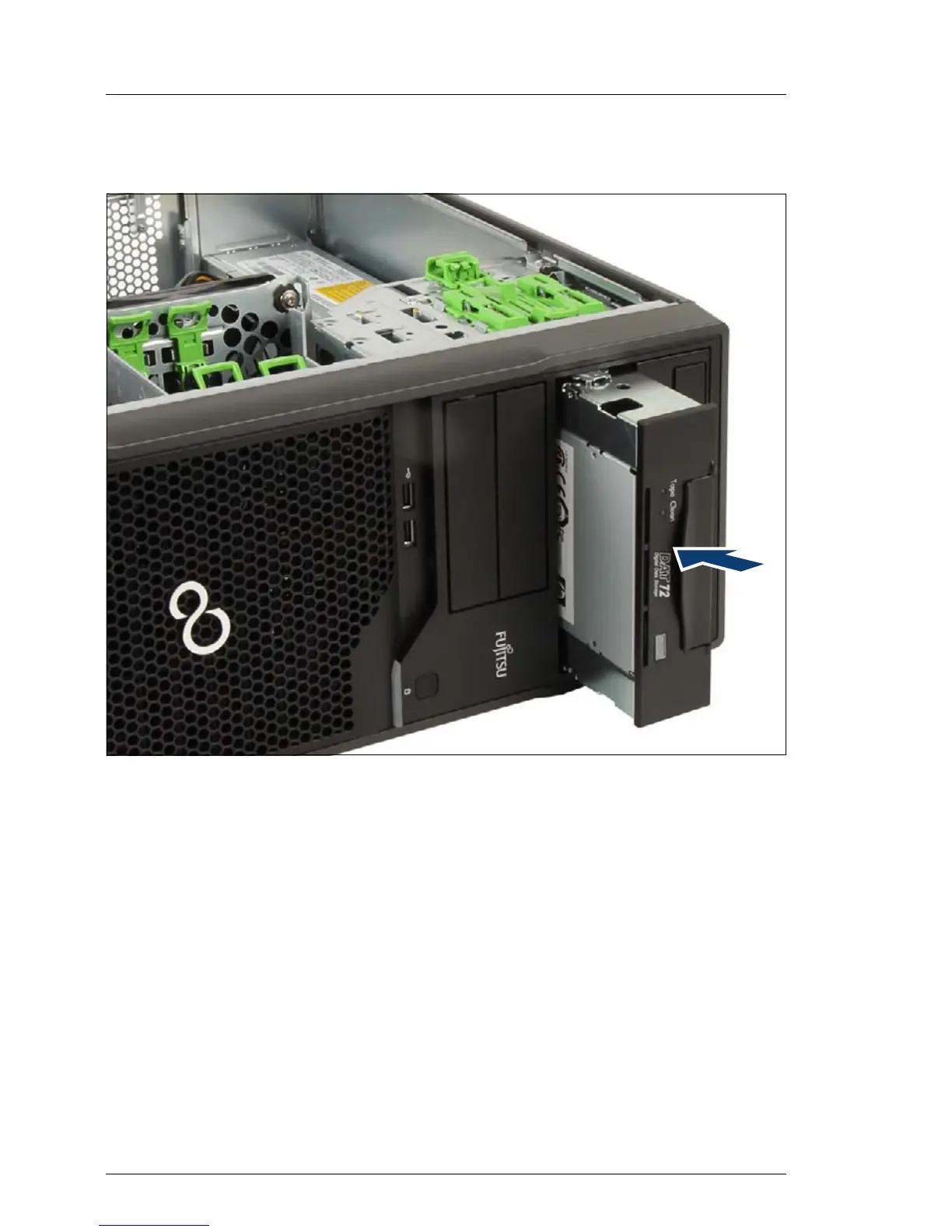

Figure 14: Installing the backup drive
Ê Insert the backup drive into its installation bay and carefully push in until it
locks in place.
I Make sure that the fixation plate is attached to the left side of the
accessible drive.
