TX100 S3 Core Edition Upgrade and Maintenance Manual 123
Main memory
10.2.3 Installing a memory module
Ê Identify the correct memory slot according to the mounting order described
in section "Memory sequence" on page 120.

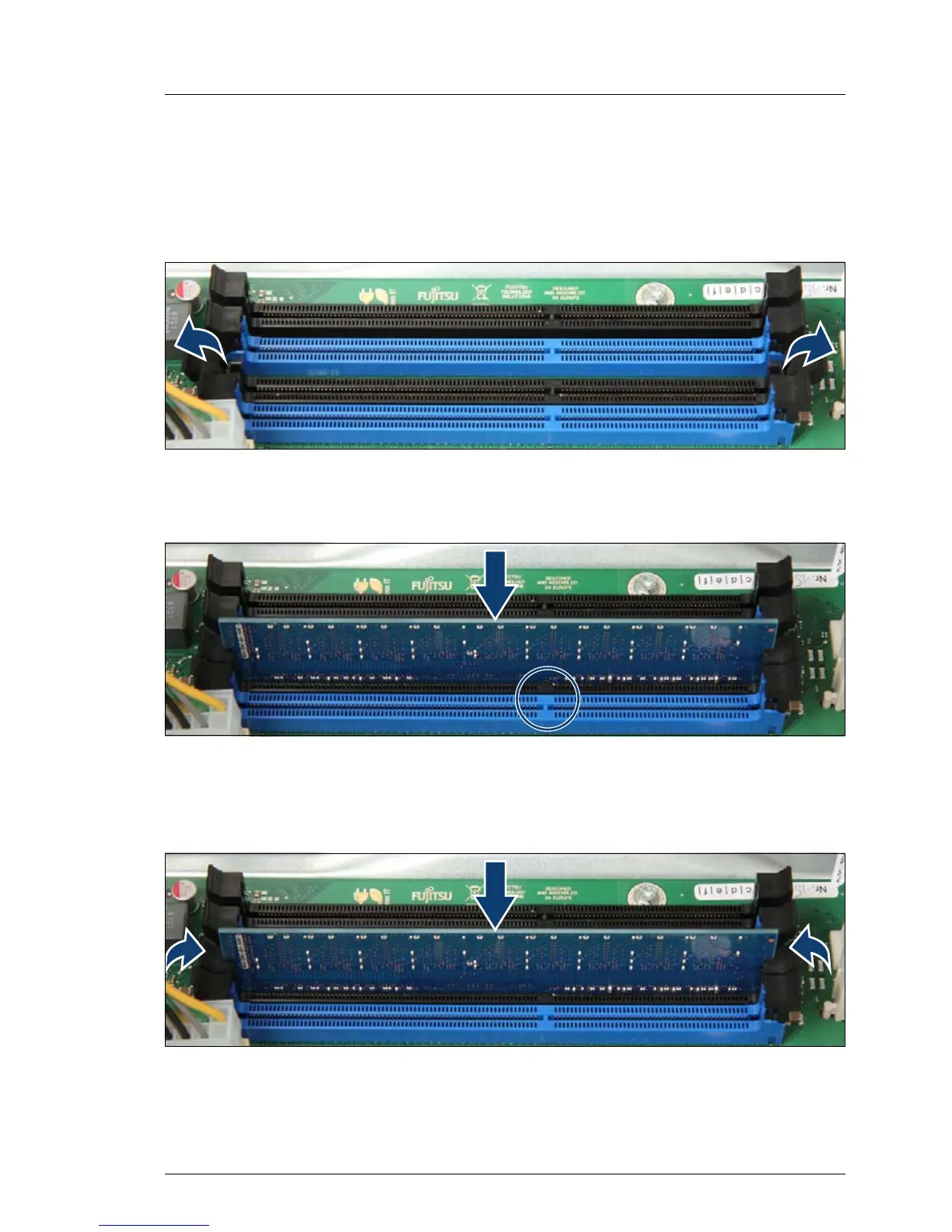

Figure 66: Installing memory modules (A)
Ê Press out the securing clip at each end of the memory module connector.
Figure 67: Installing memory modules (B)
Ê Align the notch on the bottom of the module with the crossbar in the
connector (see circle).
Figure 68: Installing memory modules (C)
Ê Press down on the memory module until the securing clips snap into the
cutouts at each end of the module.
