TX100 S3 Core Edition Upgrade and Maintenance Manual 45
Basic hardware procedures
4.3.2 Removing accessible drives
4.3.2.1 Removing optical disk drives (ODDs)

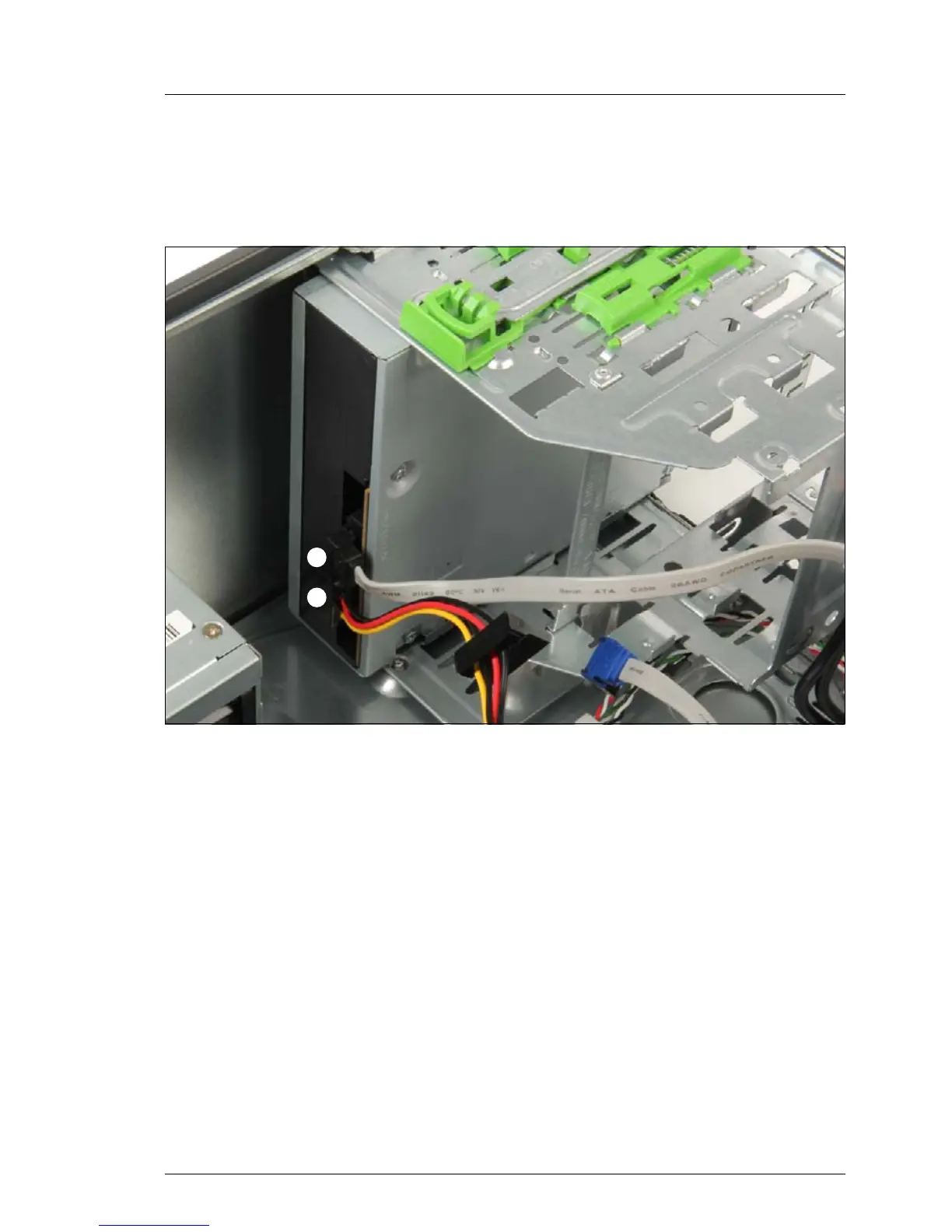

Figure 6: Disconnecting cables from the optical disk drive
Ê Disconnect all cables from the optical disk drive.
1 Power cable connector P8
2 SATA cable
/
