Fujitsu PRIMERGY TX100 S3 Core Edition Upgrade And Maintenance Manual

TX100 S3 Core Edition Upgrade and Maintenance Manual 181
Front panel and external connectors
13.1.6 Installing the front panel cable

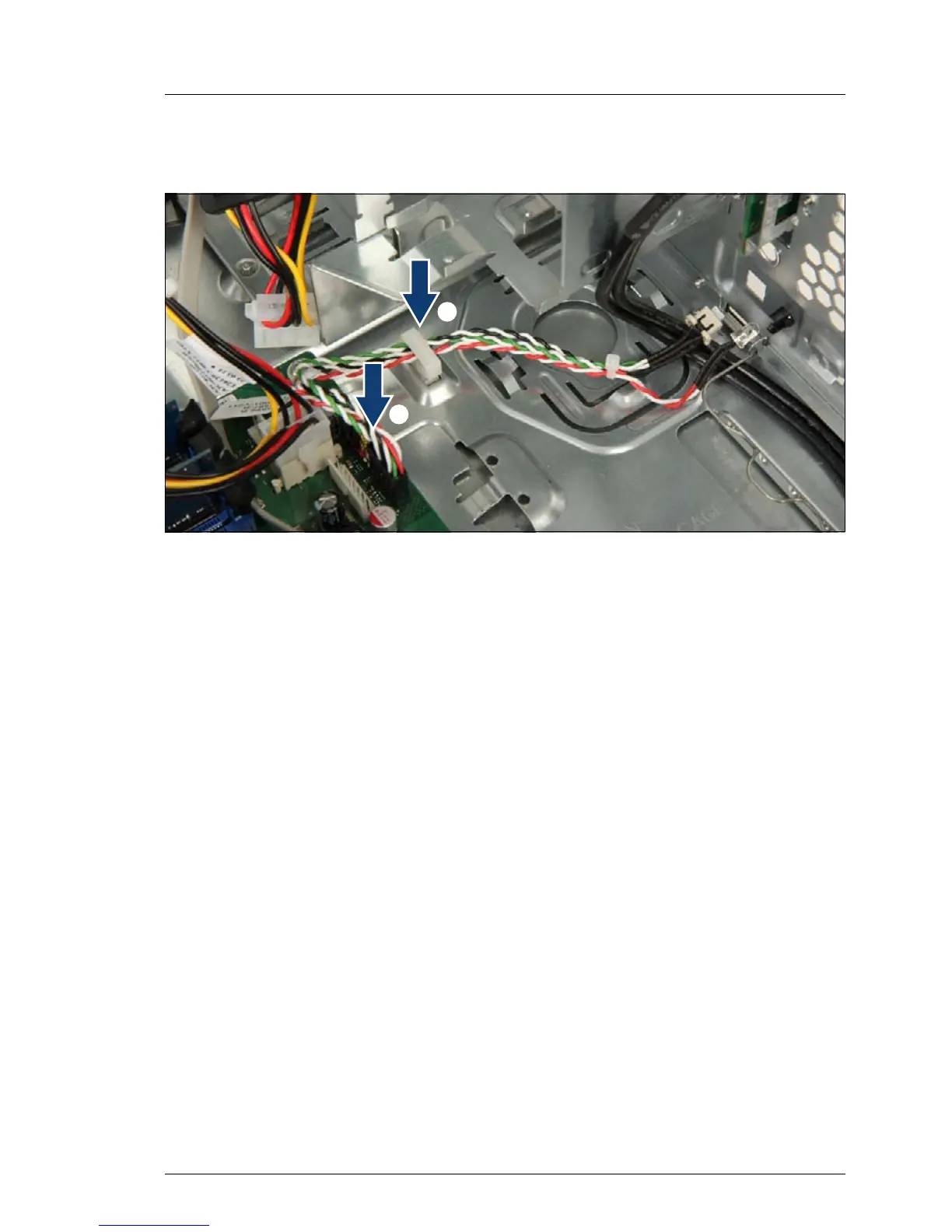

Figure 114: Connecting front panel cable
Ê Connect the front panel cable to system board connector FRONT PANEL
(1).
Ê Route the cable as shown.
Ê Secure the cable with the cable clamp (2).
/
