82 Upgrade and Maintenance Manual TX100 S3 Core Edition
Power supply

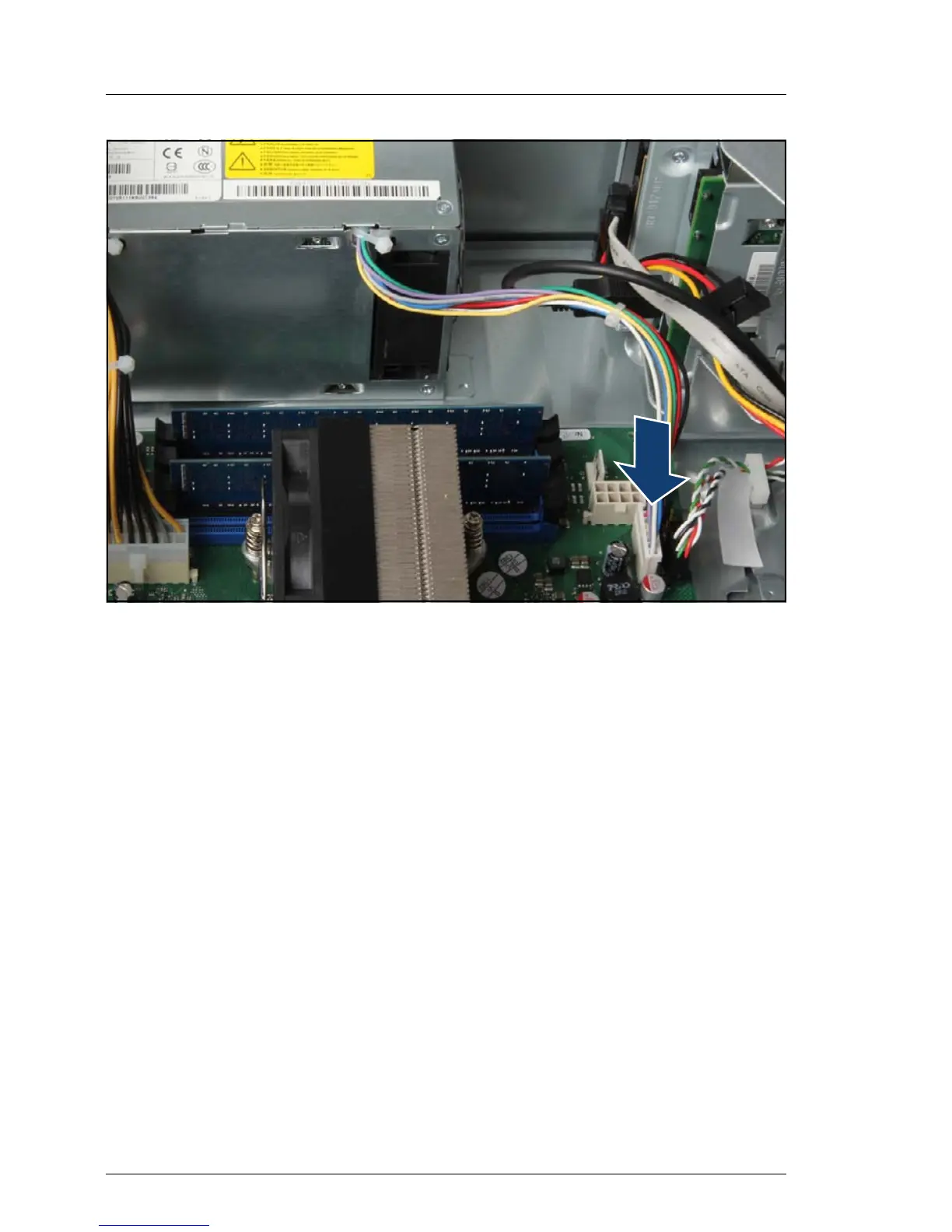

Figure 35: Connecting power cable
Ê Connect the PSU power management connector to system board connector
PC2009.
6.1.7 Concluding steps
Perform the following procedures to complete the task:
Ê Close the side cover as described in section "Installing the side cover" on
page 56.
Ê Reconnect the AC power cord to the power supply unit and secure it with a
cable tie as described in section "Connecting the server to the mains" on
page 57.
