TX100 S3 Core Edition Upgrade and Maintenance Manual 113
System fan modules

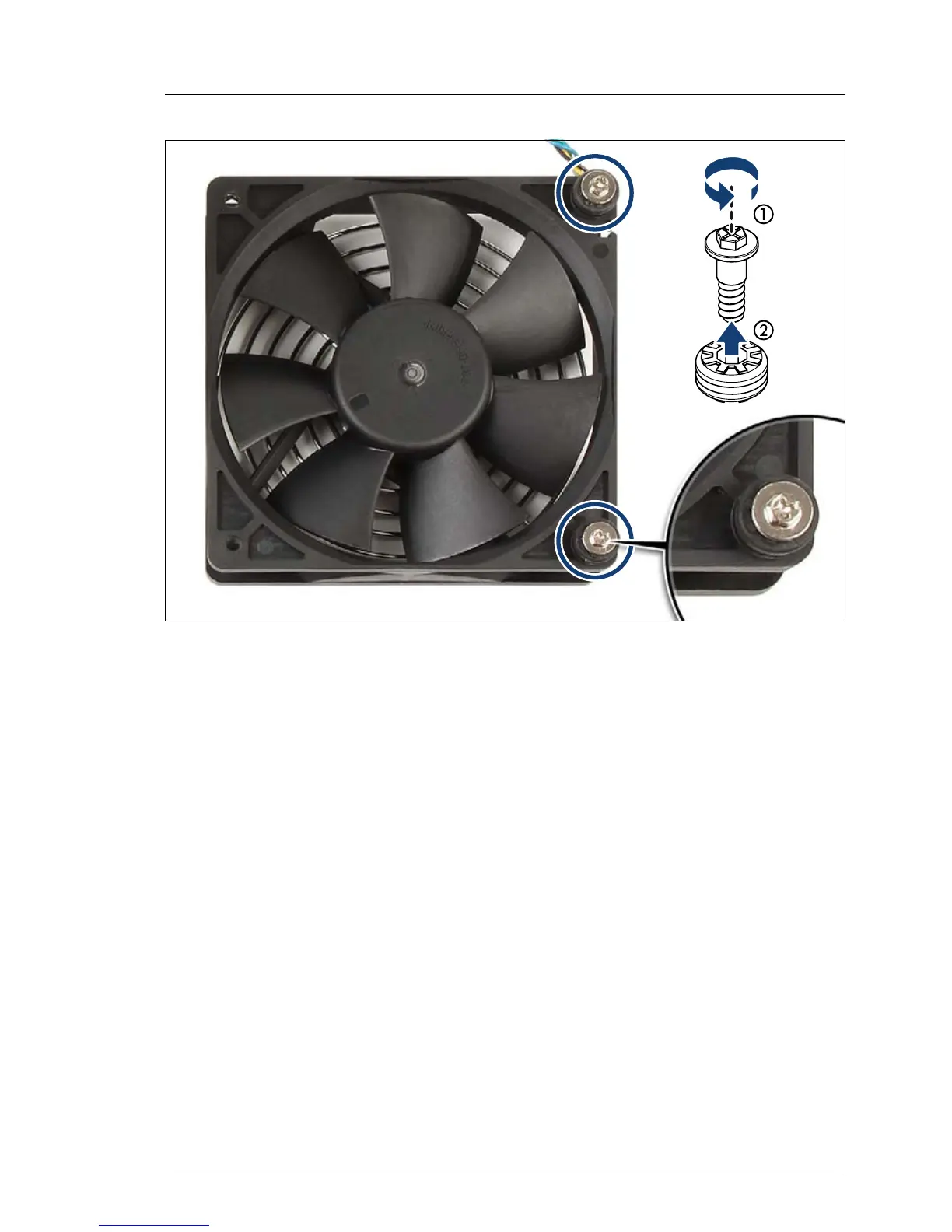

Figure 61: Revomal of the bushings
Ê Remove the two fan screws from the fan (1).
Ê Remove the fan bushings from the fan (2).
I Keep the fan screws and fan bushings for further use. You will need both
to prepare the replacement fan.
