226 Upgrade and Maintenance Manual TX100 S3 Core Edition
Cabling

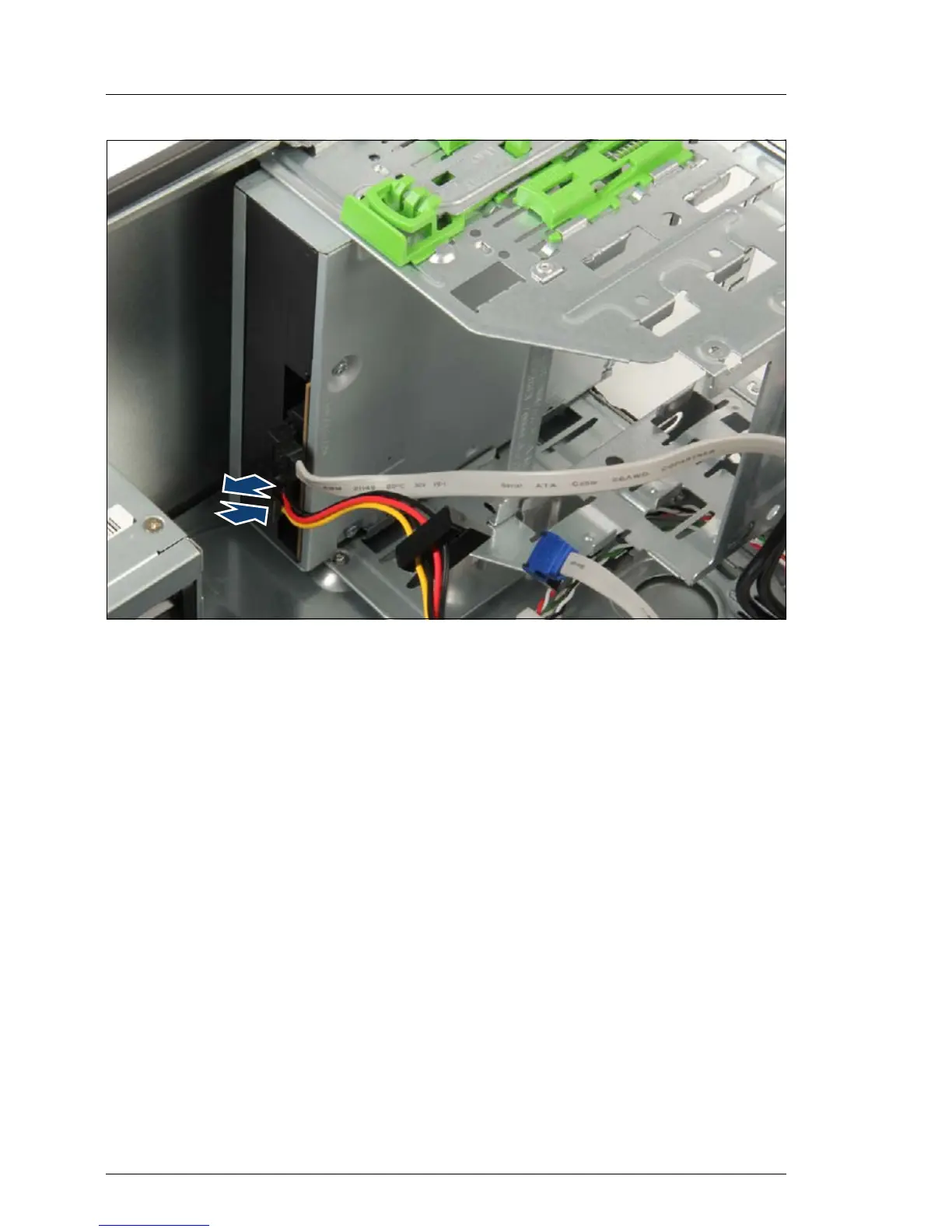

Figure 148: Disconnecting/reconnecting power cable on the optical disk drive
Ê Disconnect SATA power cable connector P8 from the optical disk drive.
Ê Connect the new SATA power cable connector P8 to the optical disk drive.
