Front panel and external connectors

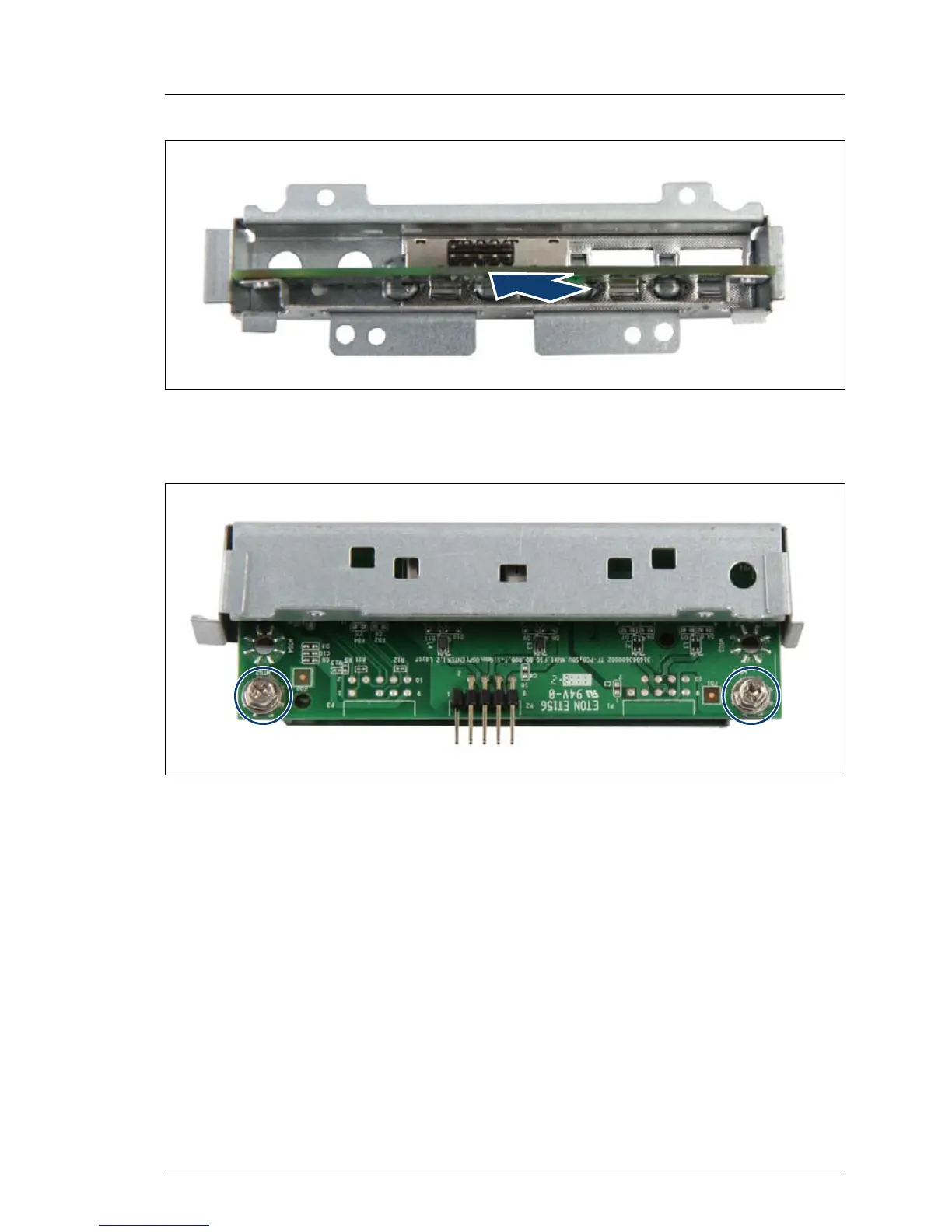

Figure 123: Installing the front USB board into the carrier (A)
Ê Fit the new front USB board into the carrier.
Figure 124: Installing the front USB board into the carrier (B)
Ê Secure the new front USB board with two screws (see circles).
