Accessible drives

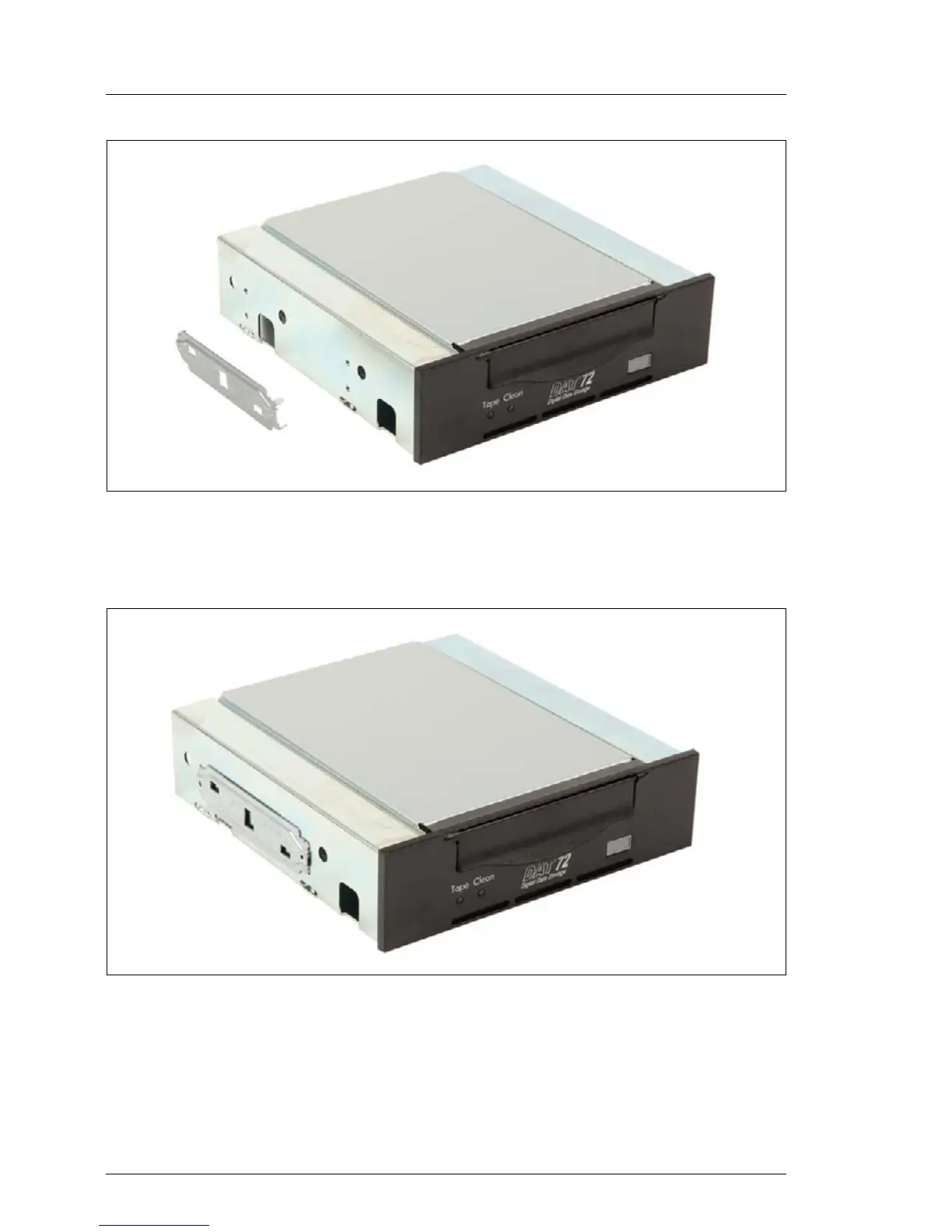

Figure 94: Attaching the fixation plate to the backup drive (A)
Ê Align the four pins on the fixation plate with the screw holes on the backup
drive.
Figure 95: Attaching the fixation plate to the backup drive (B)
Ê Attach the fixation plate to the left side of the backup drive.
