TX100 S3 Core Edition Upgrade and Maintenance Manual 91
Hard disk drives

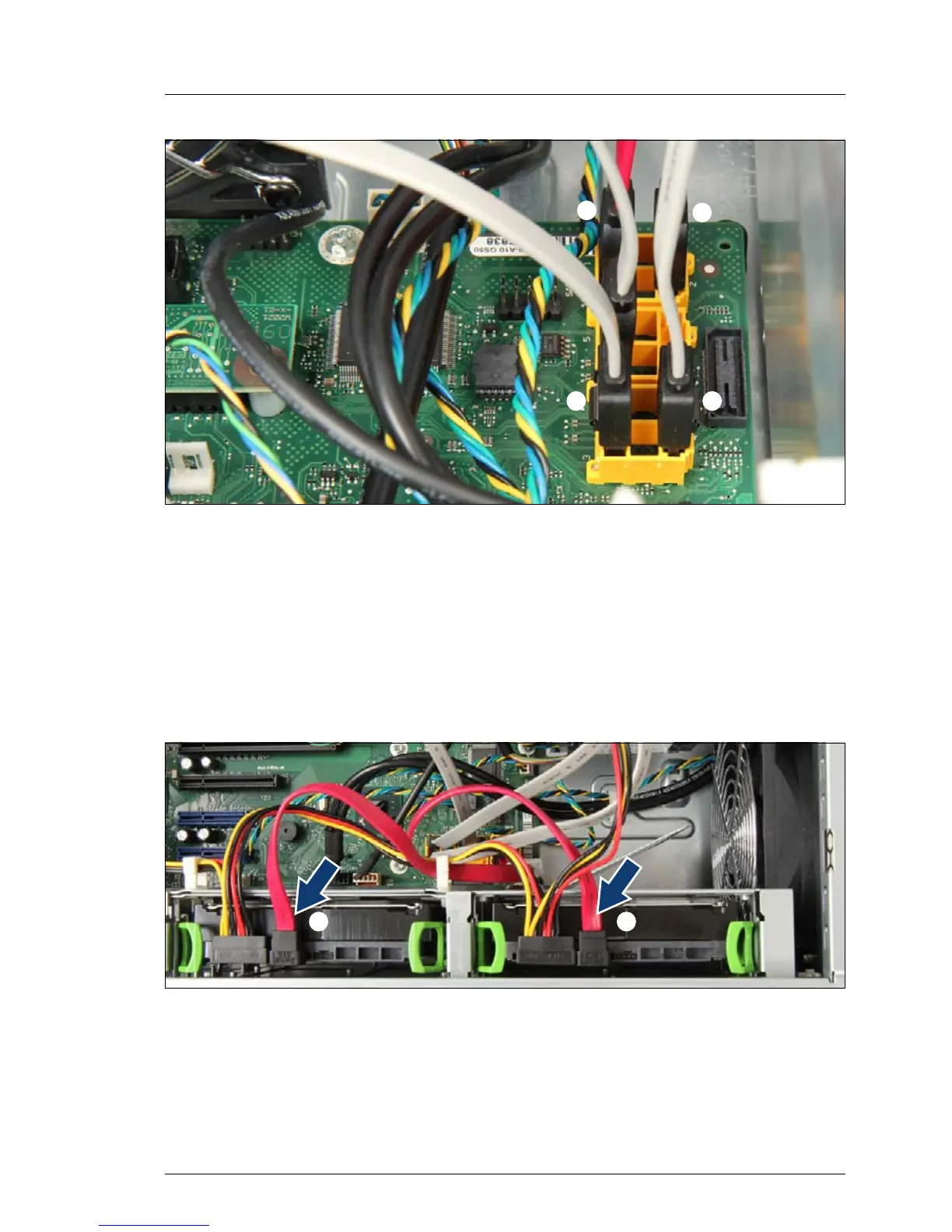

Figure 42: Connecting SATA cables to system board
Ê Connect the following cables to the system board.
1 SATA cable to connector SATA 1
2 SATA cable to connector SATA 2
3 SATA cable to connector SATA 3
4 SATA cable to connector SATA 4
Figure 43: Connecting SATA cables to HDDs 1/2
Ê Connect the SATA cable connected to system board connector SATA 1 to
HDD 1 (1).
Ê Connect the SATA cable connected to system board connector SATA 2 to
HDD 2 (2).
/
0
1 2
/0
