TX100 S3 Core Edition Upgrade and Maintenance Manual 61
Basic hardware procedures

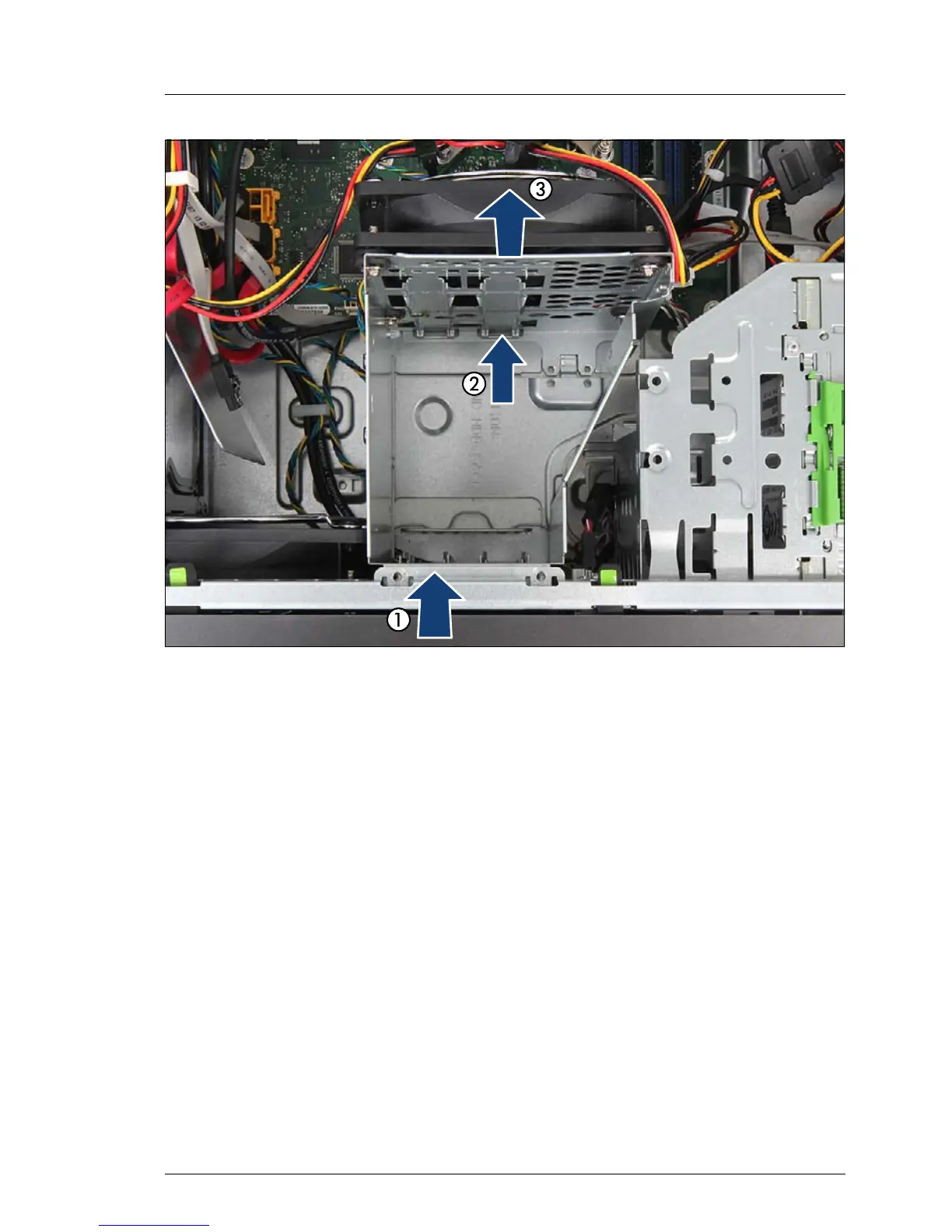

Figure 21: Removing the HDD cage
Ê Push down on the front side of the HDD cage to release the locking
mechanism (1).
Ê Slide the HDD cage towards the server rear as far as it will go (2).
Ê Carefully lift up the HDD cage until the fan cable connector is accessible (3).
V CAUTION!
Ensure not to strain the fan cable.
