138 Upgrade and Maintenance Manual TX100 S3 Core Edition
Processor

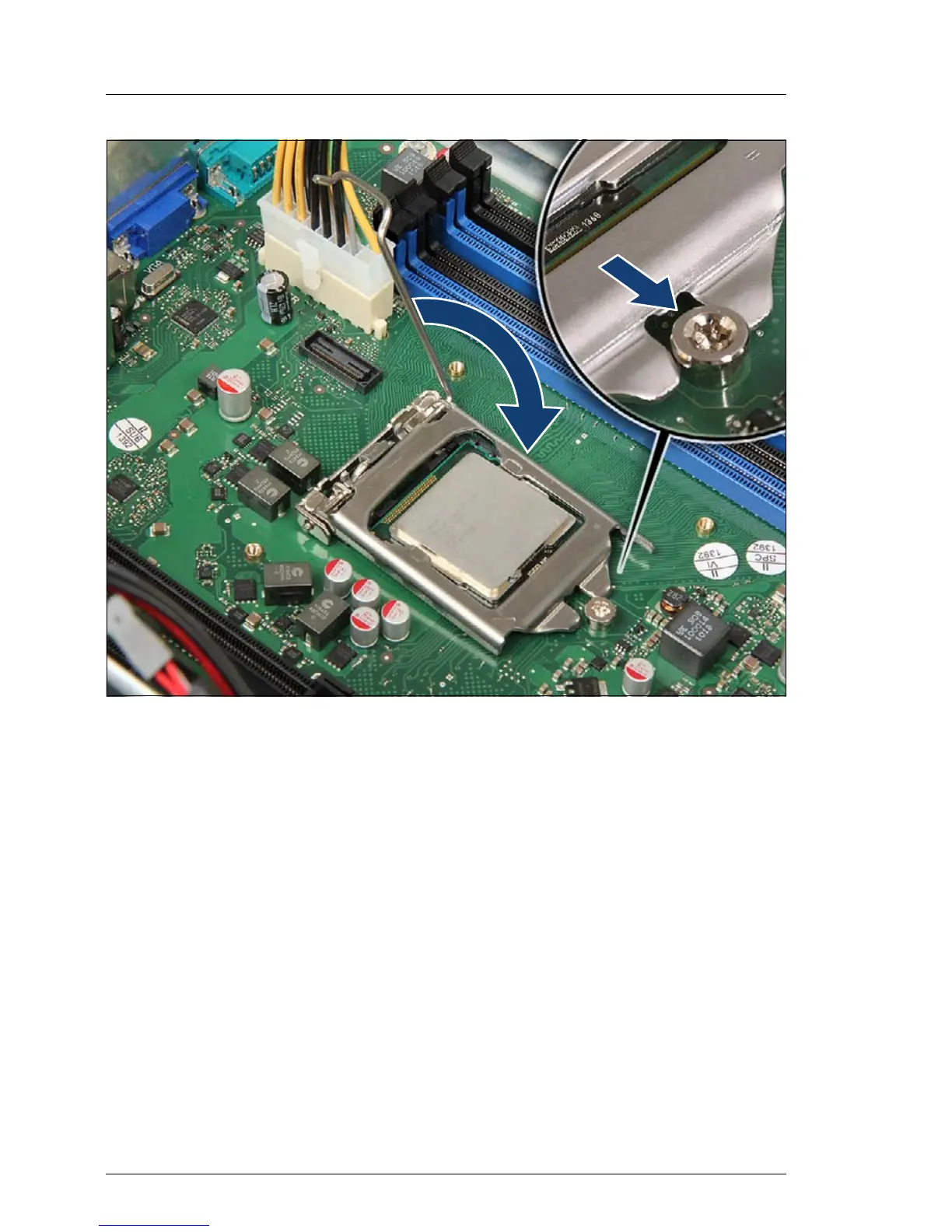

Figure 77: Closing the load plate (B)
Ê Lower the socket lever while making sure that the front edge of the load plate
slides under the shoulder screw cap (see close-up) as the lever is lowered.
