Processor

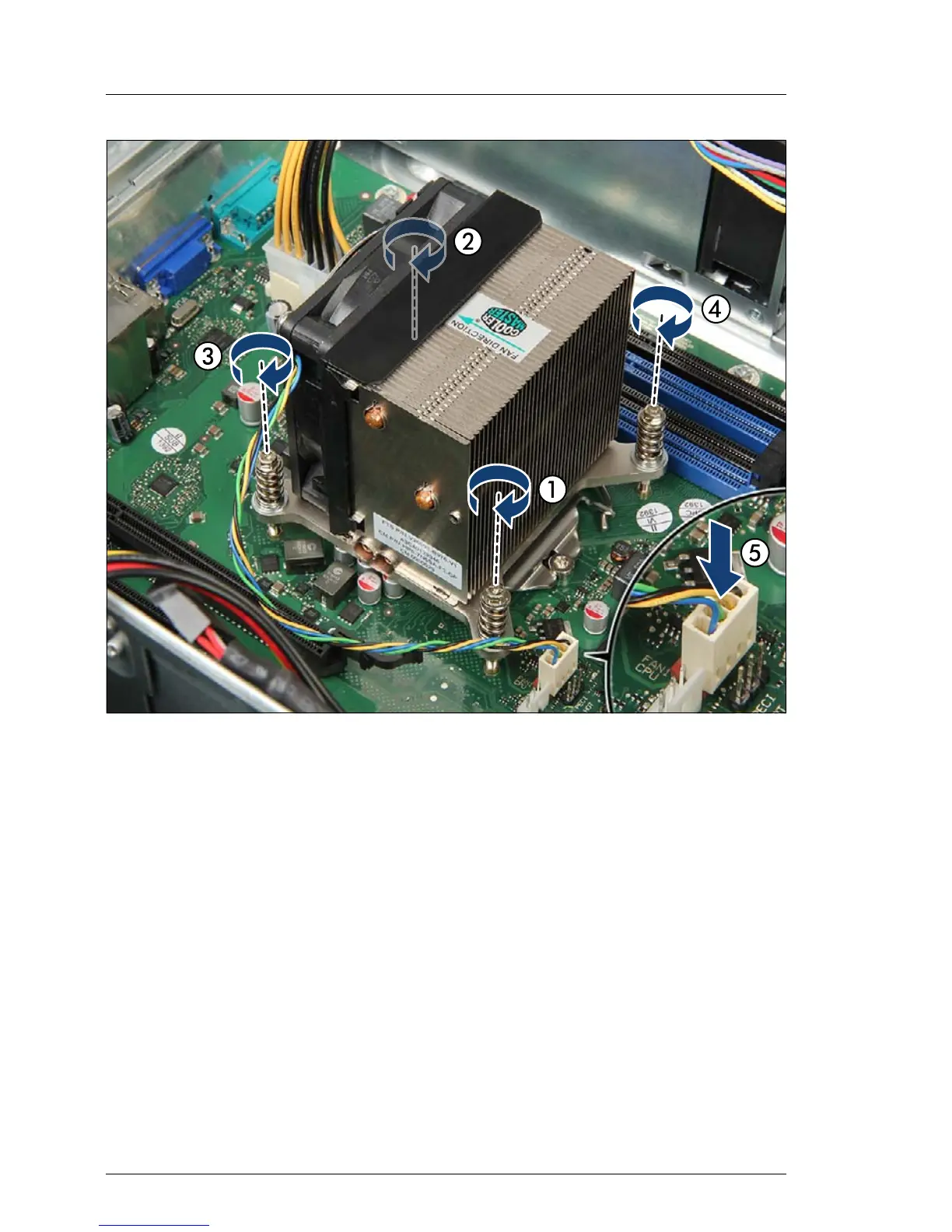

Figure 83: Installing the heat sink (B)
Ê Fasten the four captive screws on the heat sink in a crossover pattern (screw
torque: 0.6 Nm, not applicable for the Japanese market) (1-4).
Ê Connect the heat sink fan connector to system board connector FAN CPU
(5).
