TX100 S3 Core Edition Upgrade and Maintenance Manual 151
Accessible drives

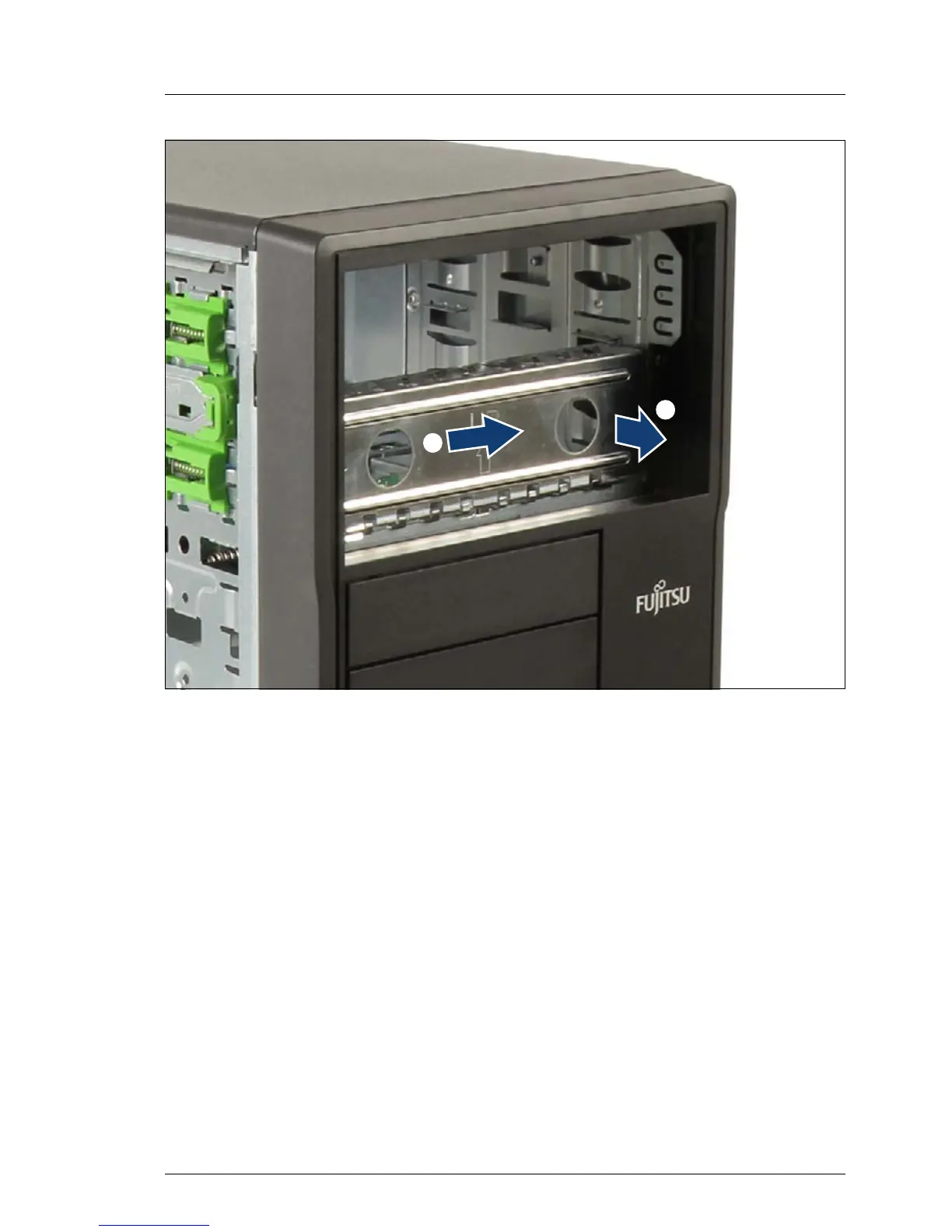

Figure 86: Removing the filler cover from drive bay 2
Ê Hold the backup drive filler cover by its two handle recesses, push it a little
to the right (1) and pull it out of the installation bay (2).
V CAUTION!
Save the dummy covers for future use.
Always replace the dummy covers into the unused drive bays to
comply with applicable EMC regulations and satisfy cooling
requirements.
/
