TX100 S3 Core Edition Upgrade and Maintenance Manual 167
Accessible drives

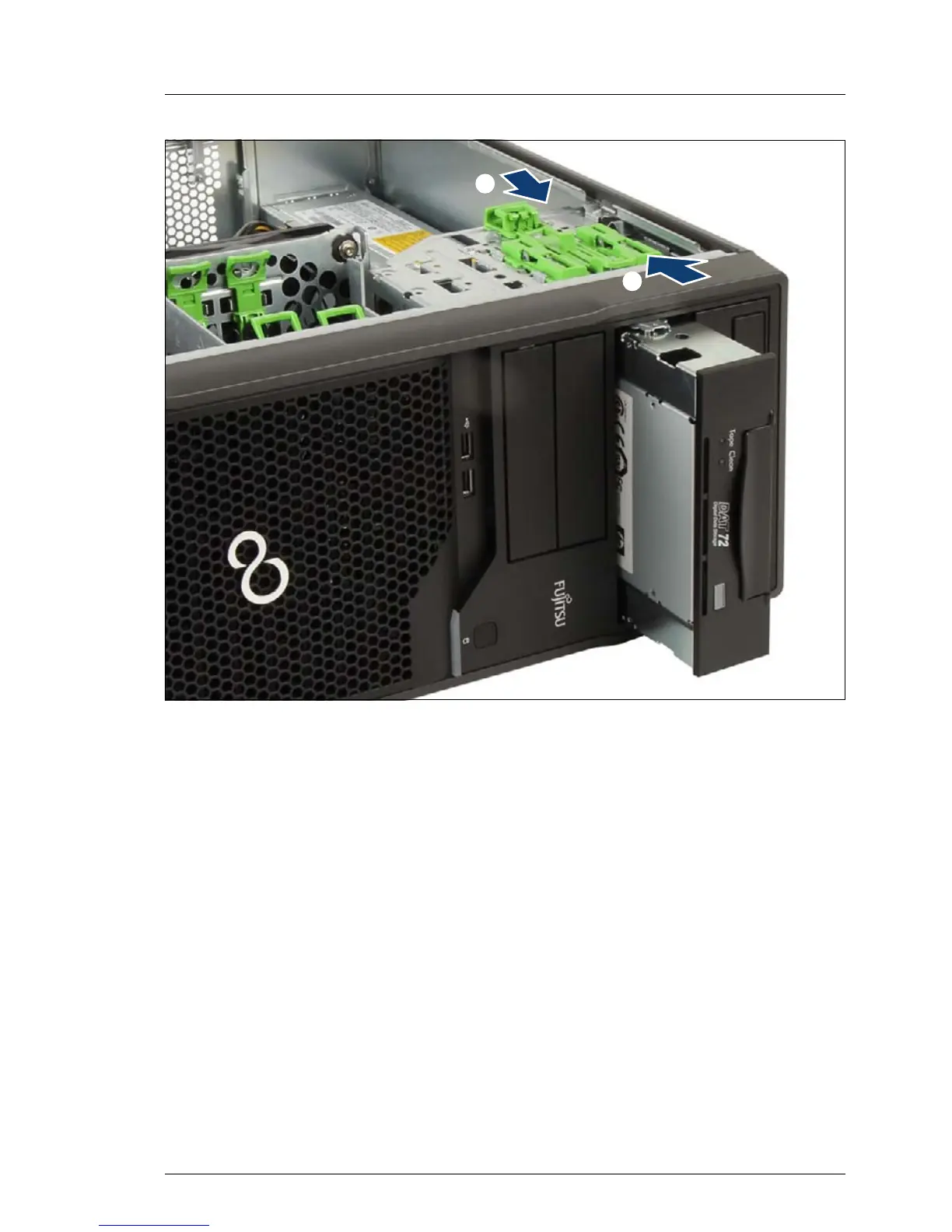

Figure 103: Removing the backup drive
Ê Press the locking latch in the direction of the arrow (1) and push out the
backup drive from behind (2).
Ê Remove the backup drive from its bay.
/
