TX100 S3 Core Edition Upgrade and Maintenance Manual 199
System board and components

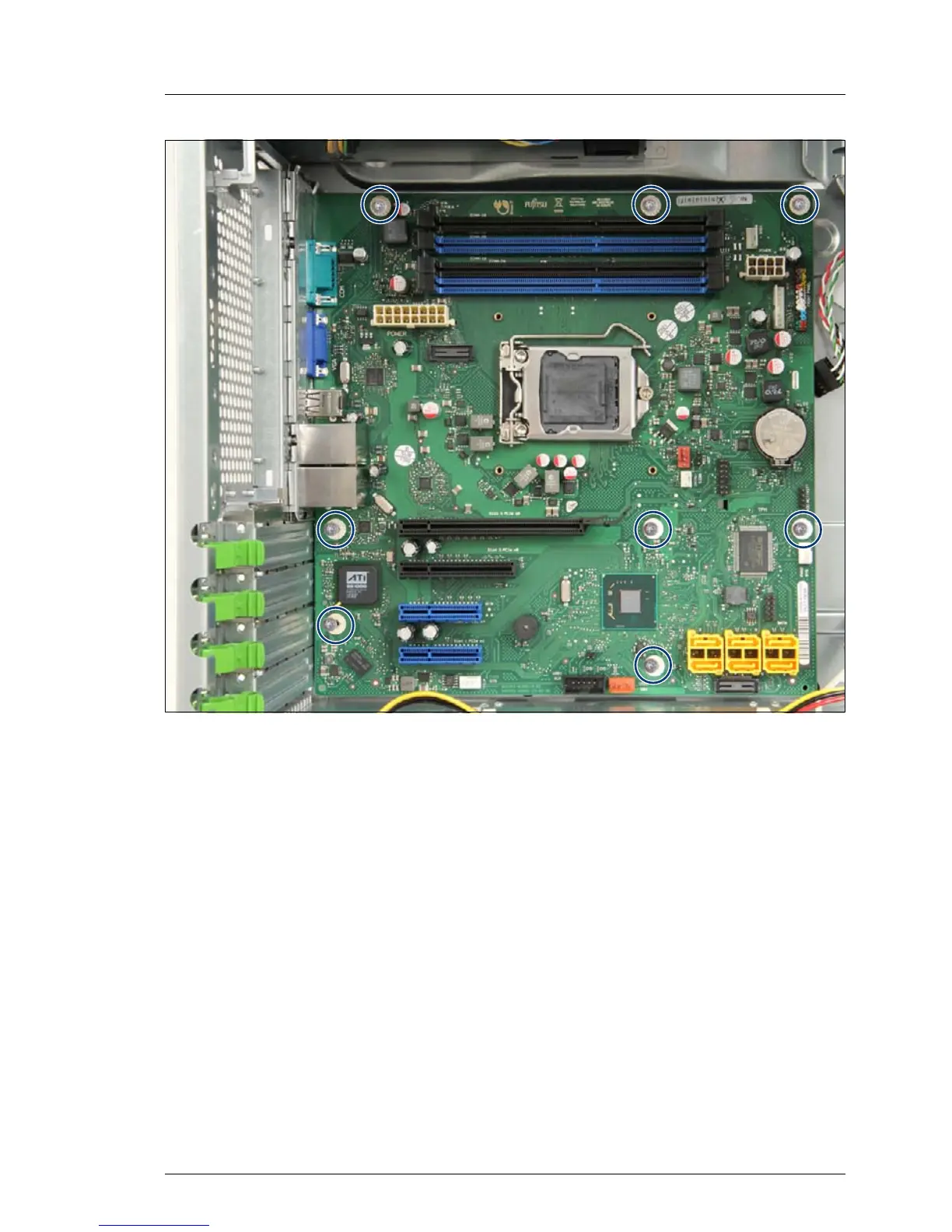

Figure 128: Detaching the system board (A)
Ê Remove eight screws from the system board (see circles).
