TX100 S3 Core Edition Upgrade and Maintenance Manual 201
System board and components

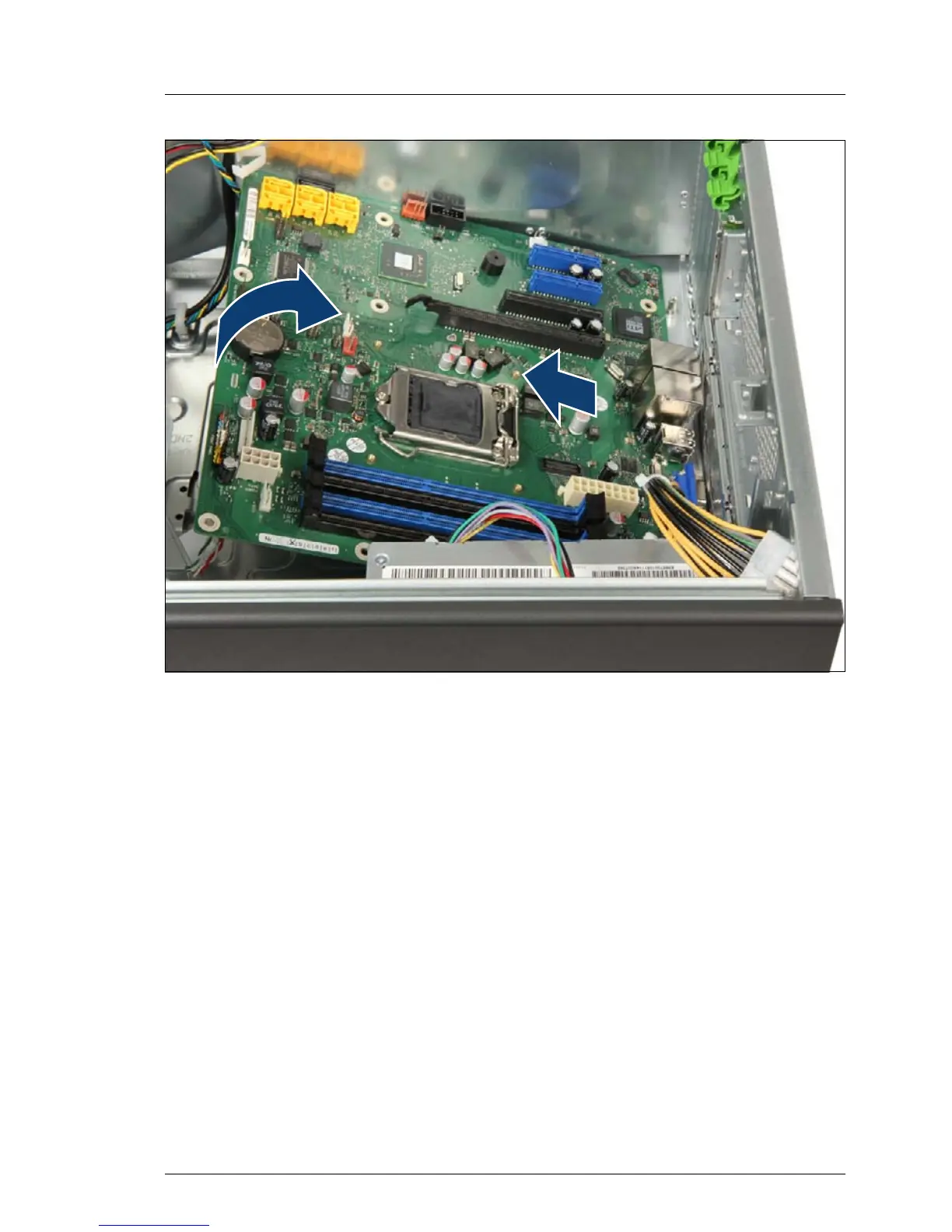

Figure 130: Removing the system board
Ê Hold the defective system board by the memory module ejectors and a PCI
slot and at a slight angle lift it out of the chassis.
