Hard disk drives

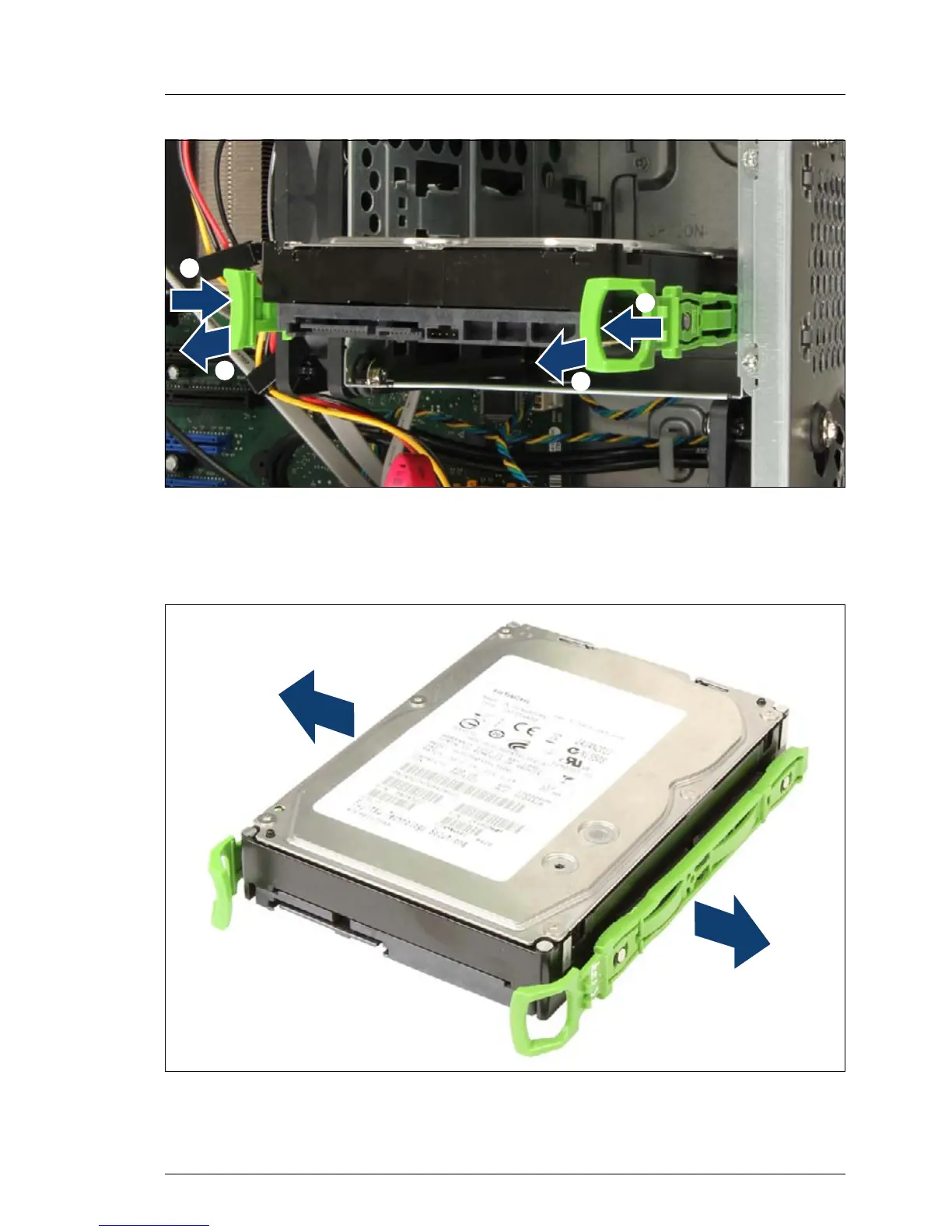

Figure 46: Removing a 3.5-inch HDD
Ê Press in on the green Easyclick rail handles (1) to disengage the locking
mechanism and pull the HDD completely out of its bay (2).
Figure 47: Detaching the Easyclick rails
Ê Detach the Easyclick rails from the HDD.
/
/
