Revision 1 104 9/10/2019
5.14.1 Enables Entire Sequencer Operation
Checkbox
The Enables Entire Sequencer Operation checkbox must be checked for sequencer
operations to execute. If this box is not checked, the analyzer will be in Idle mode and not
analyzing the gas stream.
5.14.2 Available Run Types
A list of all the types of gas runs listed under each stream is provided on the left side of the
tab. To setup a sequence of gas runs, click on the desired gas type in the Available Run
Types columns and drag it to either the Automatic Entries or to one of the eight Manual
Entries in the Sequence column.
5.14.3 Sequencer Items

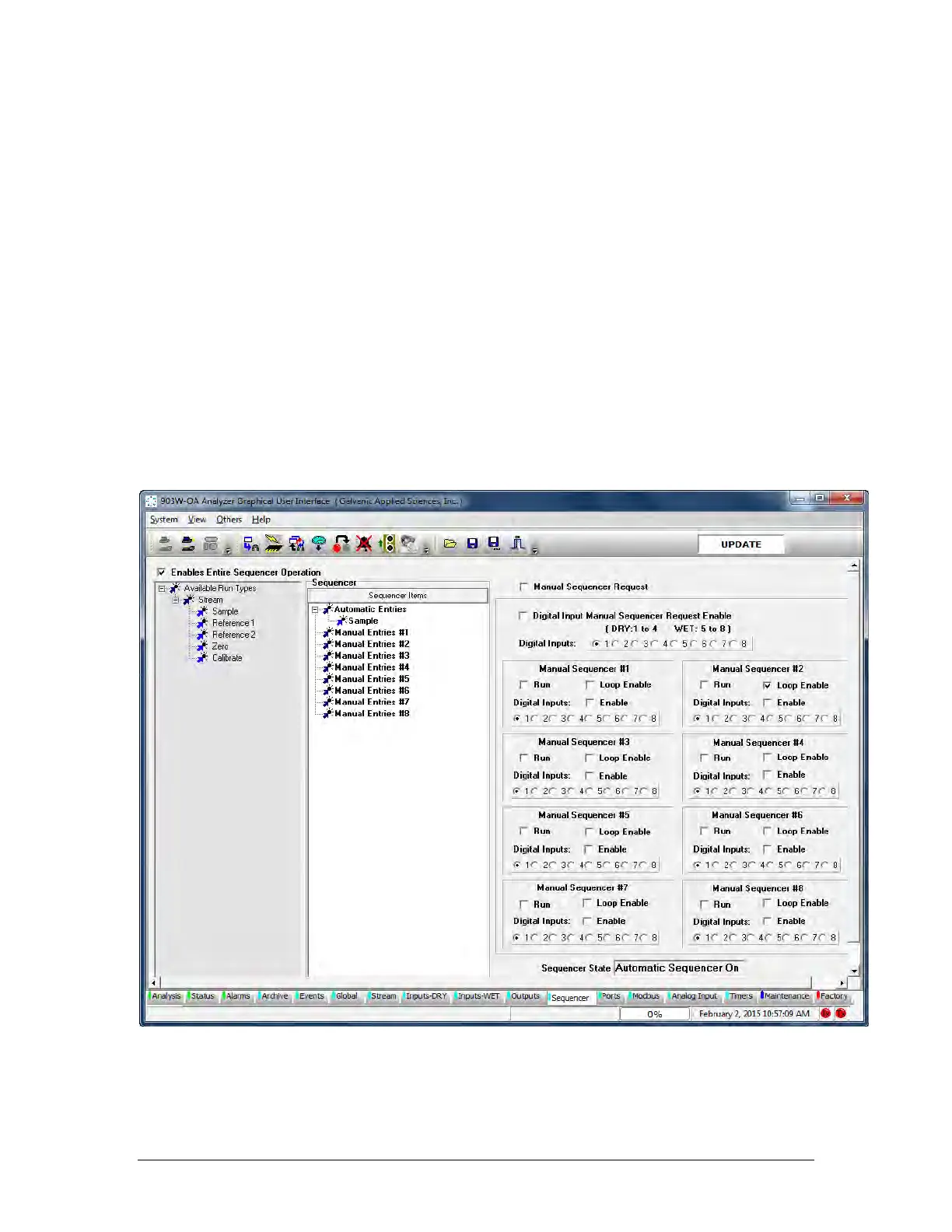

A typical sequence items list is shown in Figure 5-30.
Figure 5-30: A Typical Sequencer List
