6.4.3 Outputs Tab
The Output tab (Figure 6-7) allows the user to configure the behaviour of the 6 onboard
relays and 8 solenoids. In addition, it is where the analog outputs are named and configured.
The tab is divided into 2 main sections: Digital Output and Analog Outputs. A detailed
discussion of the Outputs tab is presented in Section 5.13.

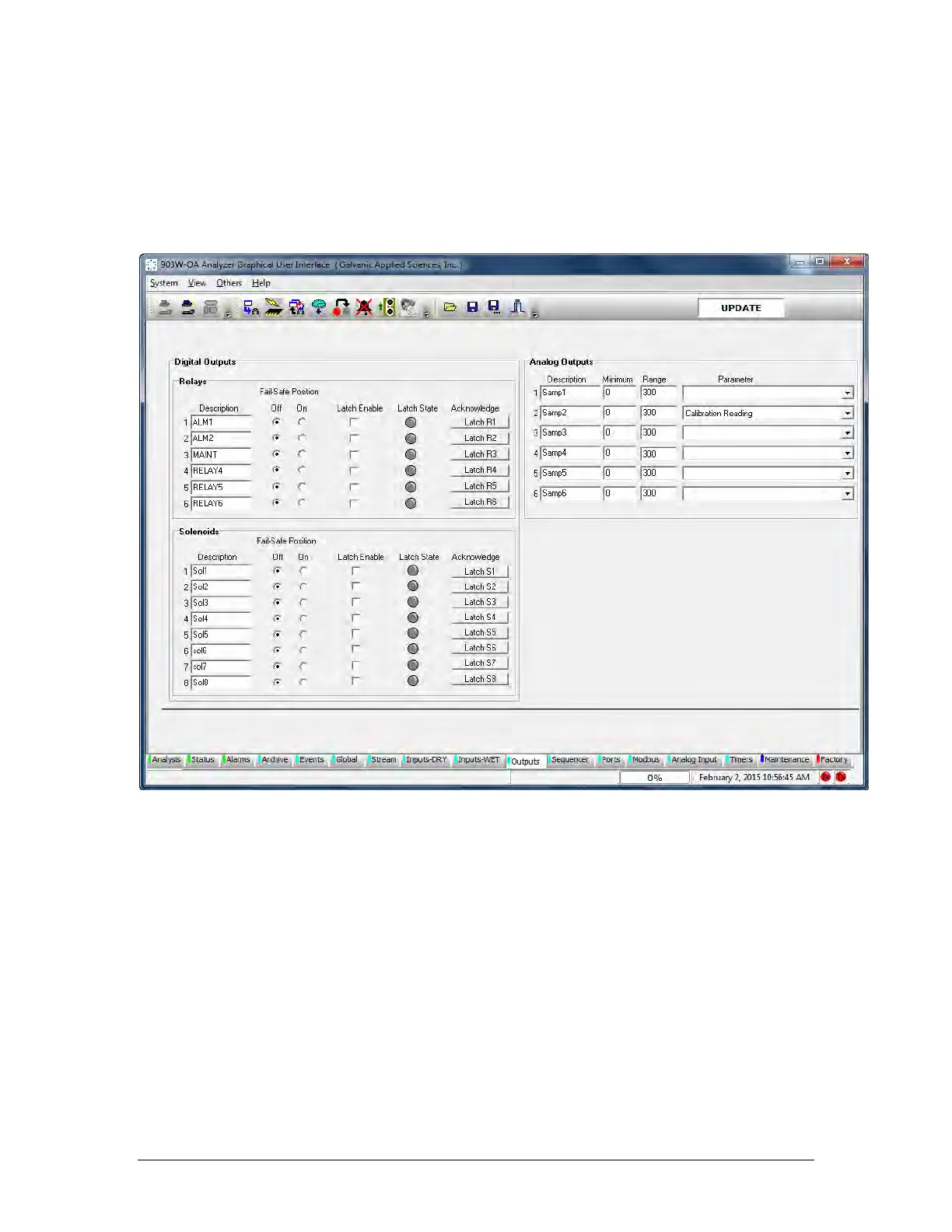

Figure 6-7: The Outputs Tab
