2.6 Sample Chamber Assembly
The sample chamber assembly is the key component in the measurement of the phosgene
concentration in the gas. The sample chamber assembly allows the sample gas to pass onto
the sensing tape, and also contains the detector assembly, (sensor block). An exploded view
of the sample chamber assembly is shown in Figure 2-5.

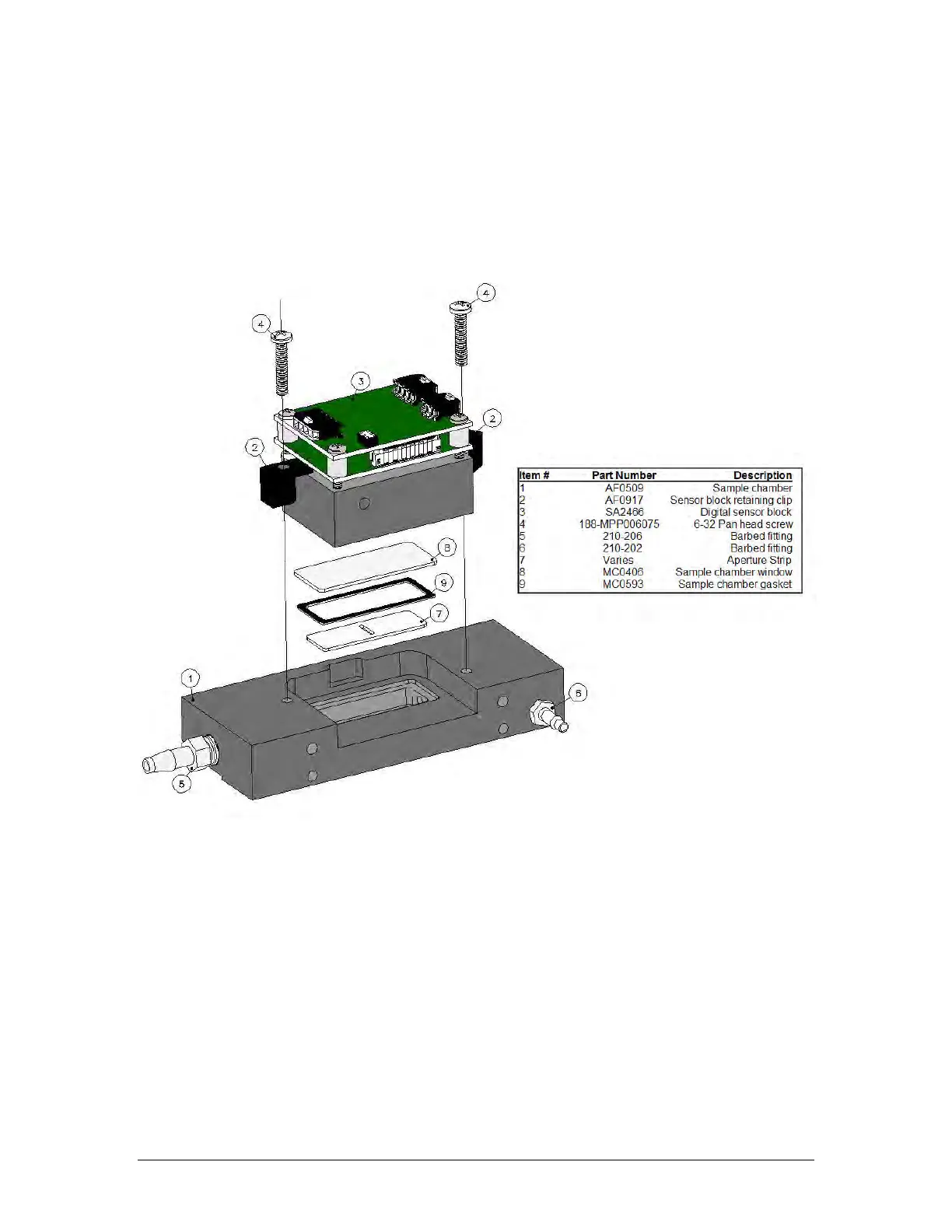

Figure 2-5: Sample Chamber Assembly (Exploded View)
