Revision 1 98 9/10/2019
5.11 Inputs- DRY Tab
There are four dry contact discrete inputs on the analyzer. The Inputs - DRY tab allows the
user to configure these discrete inputs in any manner. These inputs can be configured to
trigger a certain type of run, or to monitor external pressure or temperature switches, for
example. Each discrete input is configured in the same manner. It is important to know that
these dry contacts are for devices that are normally part of the analyzer such as a pressure
switch or temperature switch.
Changing parameters on this tab may affect the operation of the system.
Any changes should be performed by an authorized operator.

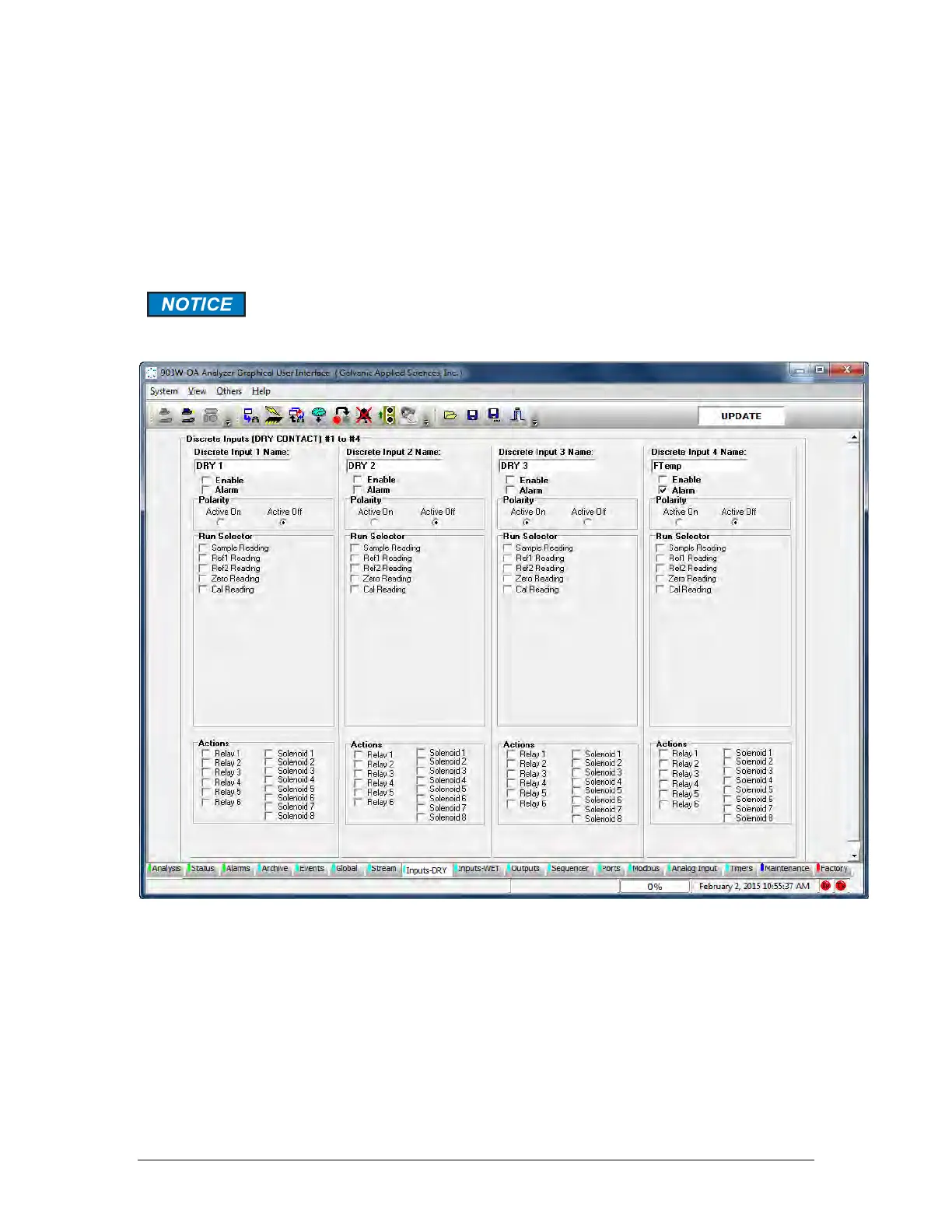

Figure 5-26: Input-Dry Tab
