3.5 Installing the Keypad and Sensing Tape
3.5.1 Installing the Keypad
Connect the keypad to the military connector on the left side of the chassis
3.5.2 Installing the Sensing Tape

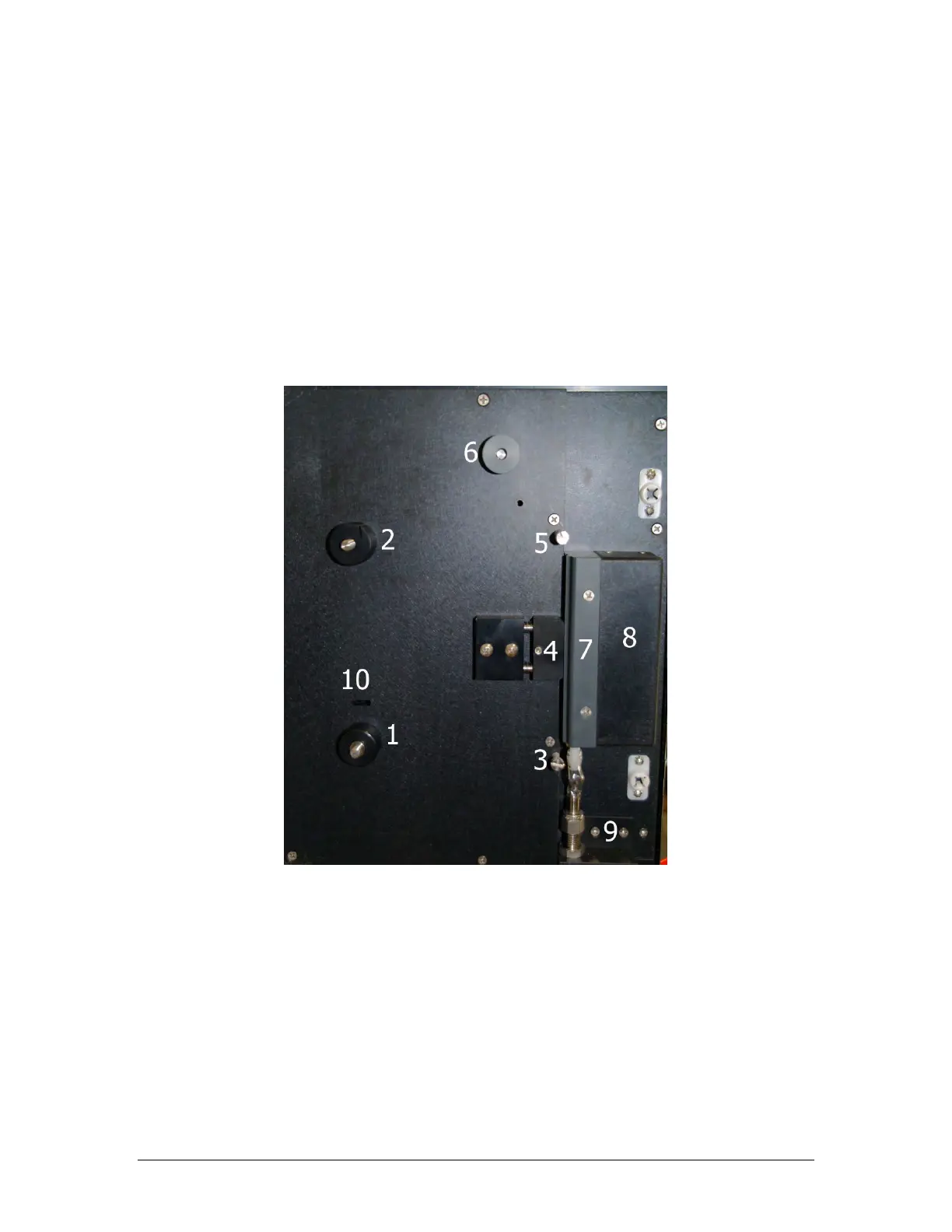

The sensing tape is installed in the tape enclosure. Figure 3-13 presents shows a photo of
the tape enclosure with all components numbered.
Figure 3-13: Tape Enclosure (see text for reference numbers)
