Revision 1 59 9/10/2019
Section 5 Graphical User Interface (GUI)
5.1 Opening the Program
This discussion assumes that the analyzer has been connected to the
personal computer. A detailed discussion of the protocol to connect the
two units is presented in Section 3.4.
The Graphical User Interface (GUI) is a Windows-based application program which provides
the analytical results and allows the operator to set a broad range of instrumental
parameters. When the program is first opened, the window shown in Figure 5-1 is presented.

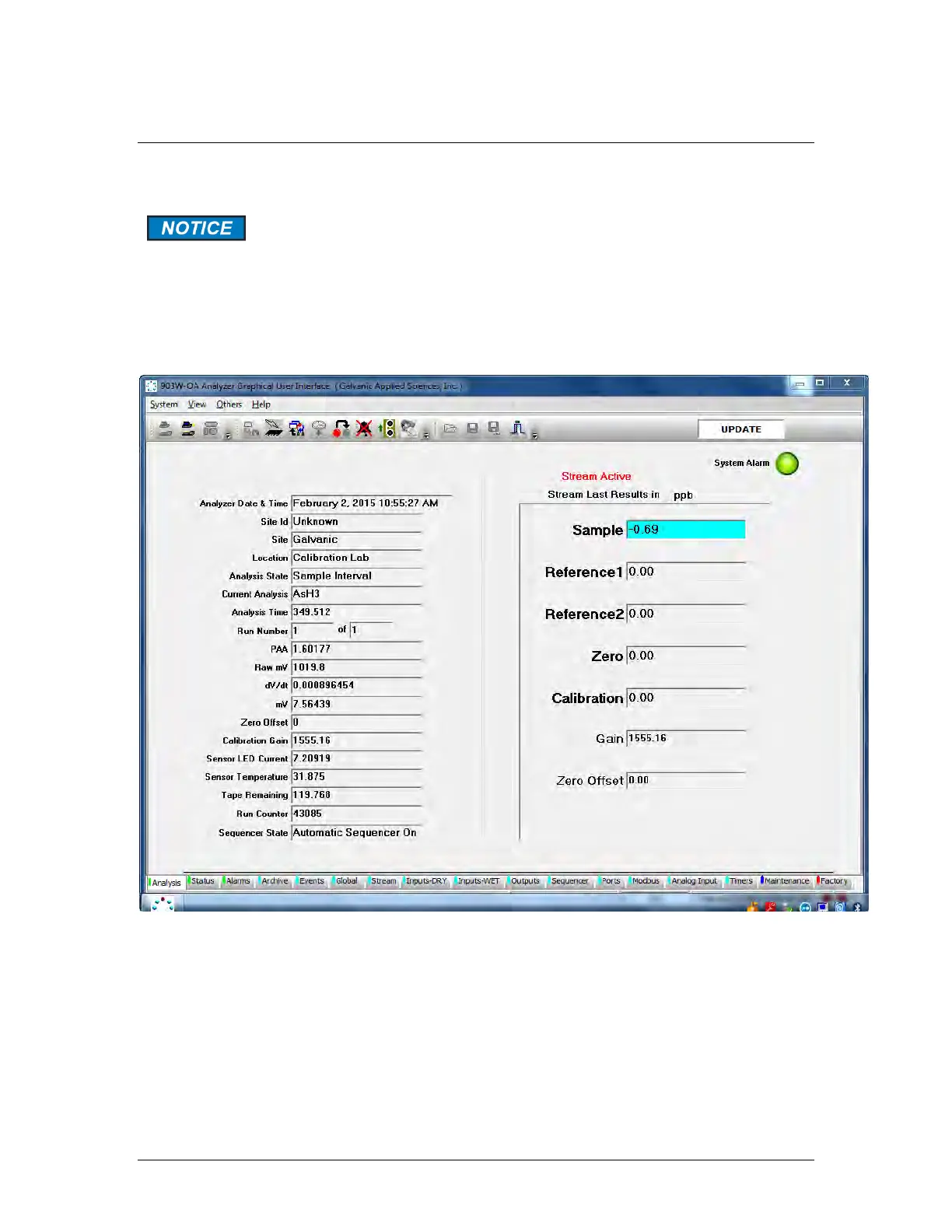

Figure 5-1: Graphical User Interface Window
