Revision 1 138 9/10/2019

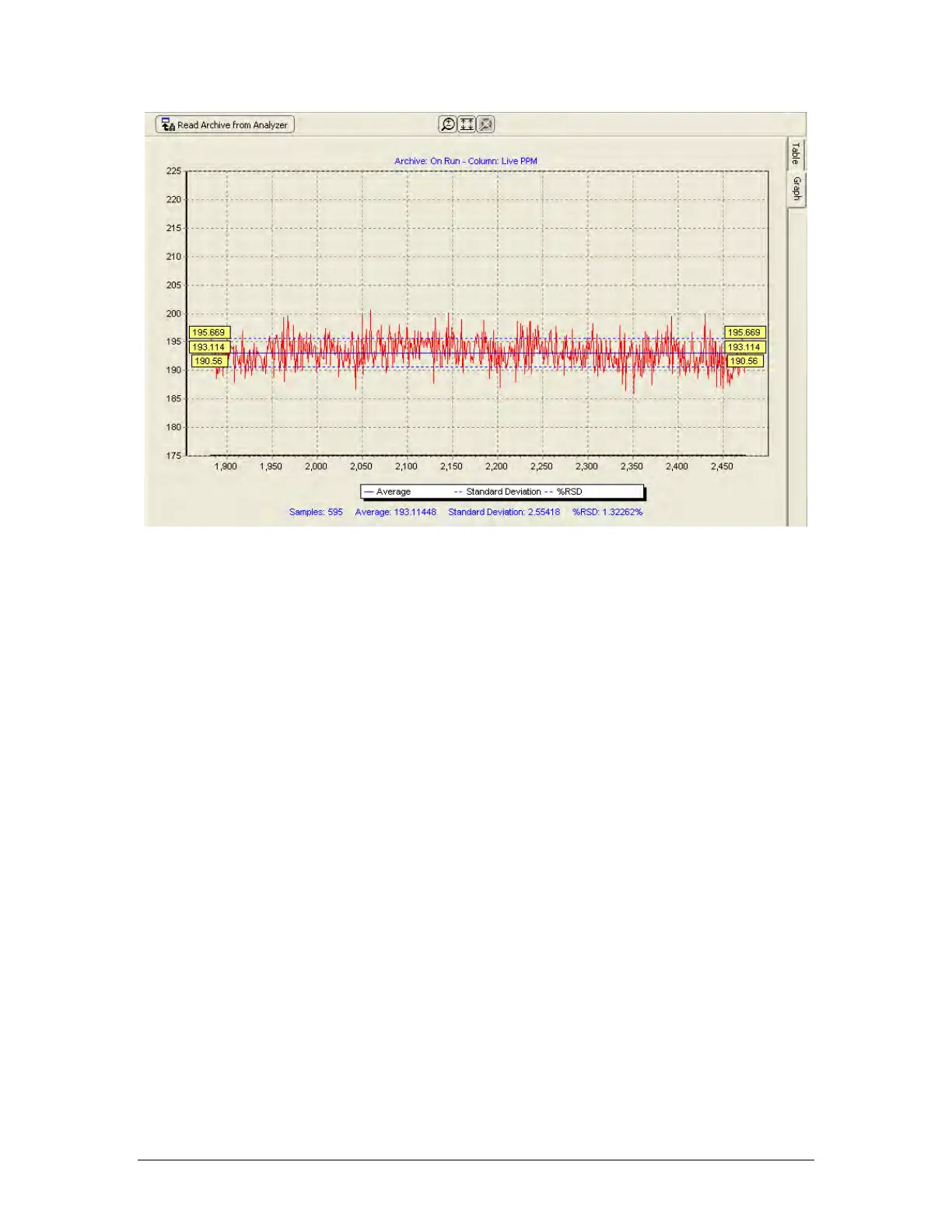

Figure 6-15: Graphic Data
6.8 Monitoring System Operation
The Event tab (Figure 6-16) presents a log of all operations that occur during operation and is
a useful way to monitor the system. It tracks all alarm conditions experienced by the analyzer,
both global and stream related, but also such things as changes in configuration and power
up events. A detailed discussion of the Event tab is presented in Section 5.8.
