6.5 Calibrating/Validating the Analyzer Outputs
The Maintenance tab (Figure 6-11) is used to manually manipulate the analyzer’s outputs.
Analog output loop test can be performed by using the Analog Output Test feature to deliver
0, 25, 50, 75 and 100% of full scale or any other test values. The outputs can also be
adjusted by using the Analog Output X Calibration feature. A detailed discussion of the
Maintenance tab is presented in Section 5.19.

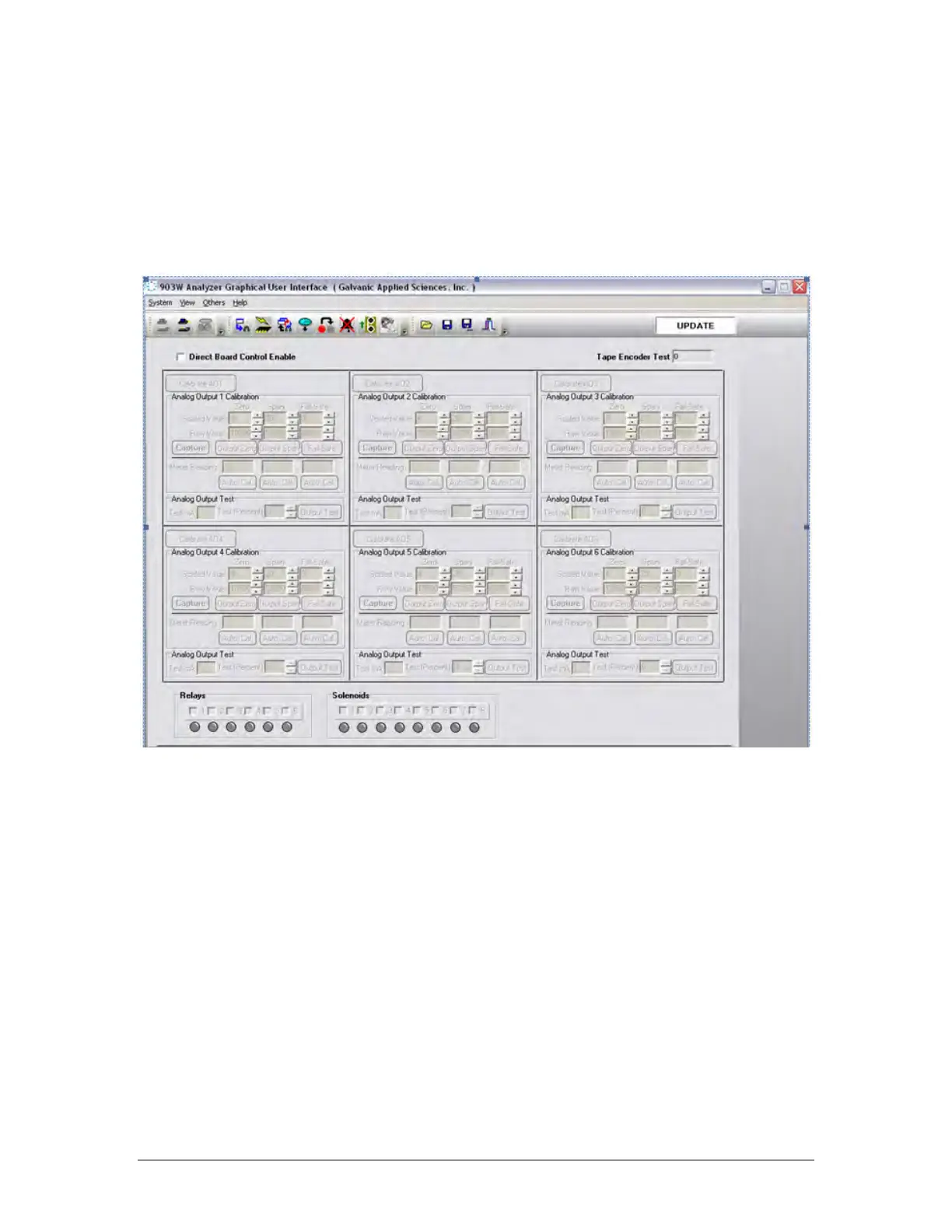

Figure 6-11: Maintenance Tab
