6.4.4 The Ports Tab
The Ports tab (Figure 6-8) shows the configuration of the 3 main communications ports on
the analyzer - the Front Panel Serial Port (RS-232), the ISO 485 Port (RS-485), and the
MODEM Port (RS-232). A detailed discussion of the Ports tab is presented in Section 5.15.

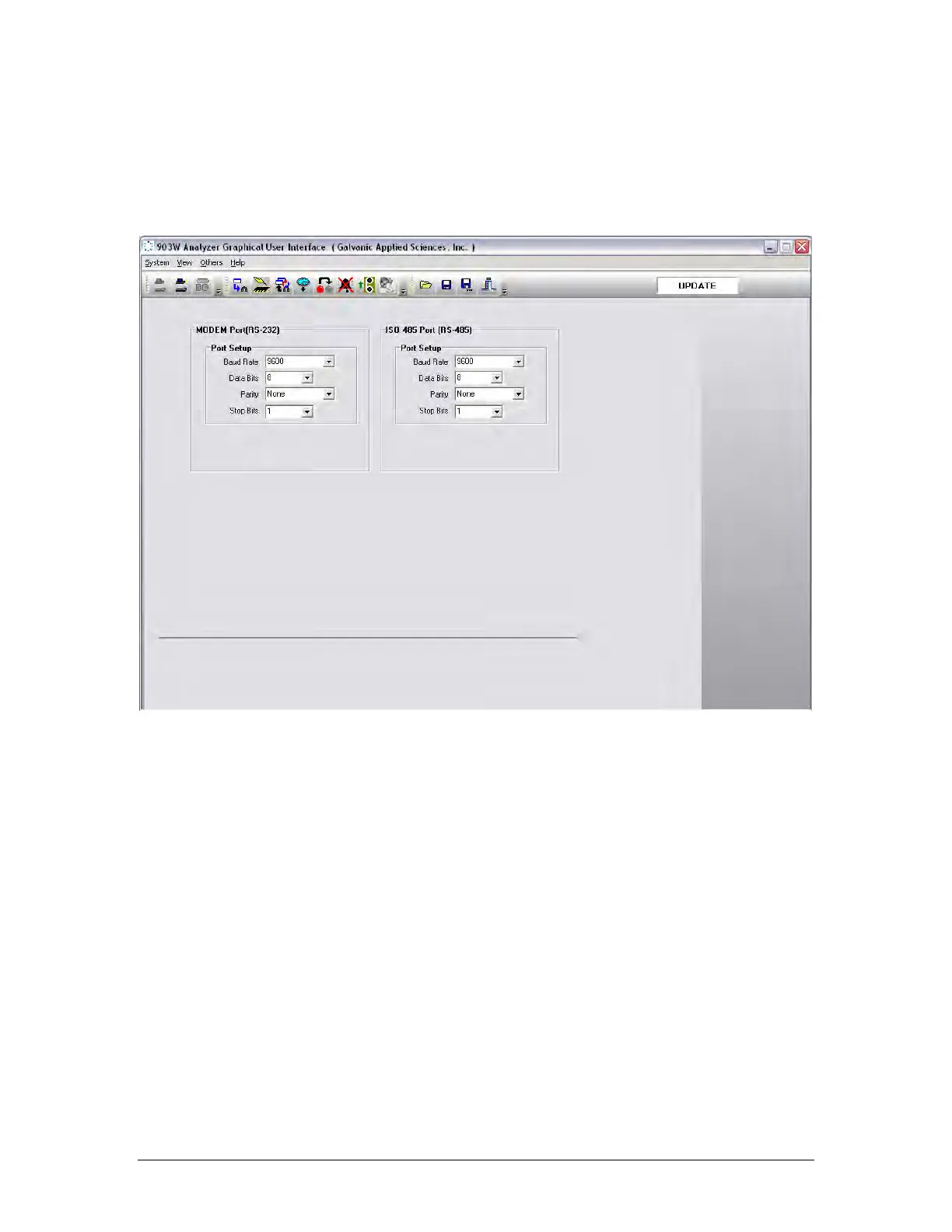

Figure 6-8: The Ports Tab
