5.17 Analog Input Tab
The Analog Input tab (Figure 5-39) is divided into two main sections: Analog Inputs # 1 - 4
and Analog Inputs Alarm:

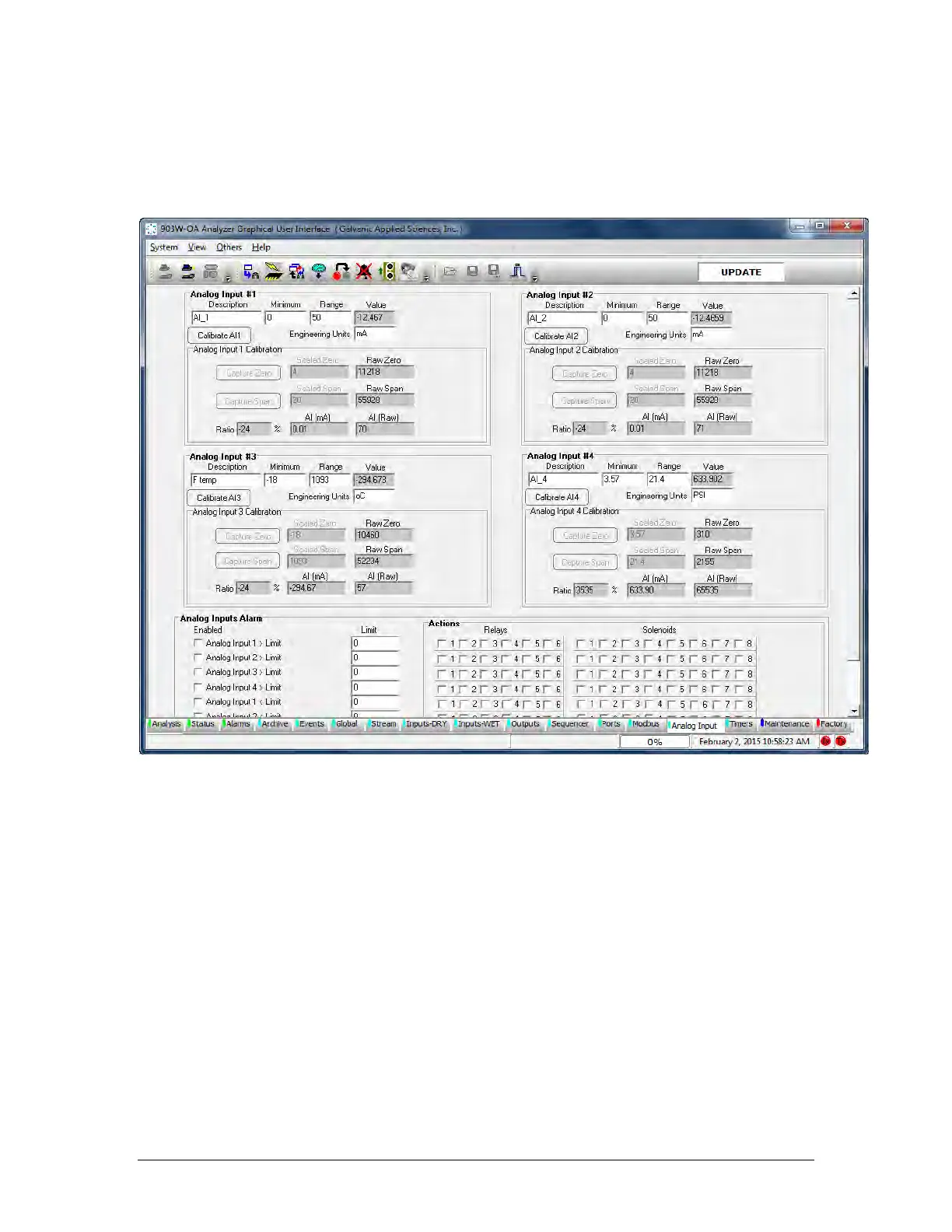

Figure 5-39: Analog Input
5.17.1 Analog Input #
There are four analog inputs, each of which contain are six data entry fields, six results fields
and three initiate buttons which are described below.
• Analog Input #1, #2 and #3 are normally setup as default 4 -20 mA inputs but all the inputs
can be scaled to what the operator requires.
• Analog # 4 default setup is for an optional pressure transducer for live pressure readings.
Within each of the Analog Input boxes are six data entry fields, six results fields and three
initiate buttons which are described in Section 6.16.2.
