6.4.2 Dry and Wet Inputs
There are four dry contact discrete inputs and four wet contact discrete inputs on the analyzer
The Inputs-WET tab (Figure 6-6) and Inputs-DRY tab are identical and allow the operator
allows the user to configure these discrete inputs in any manner. These inputs can be
configured to trigger a certain type of run, or to monitor external pressure or temperature
switches, for example. A detailed discussion of these Input tabs is presented in Section 5.11
and 5.12.

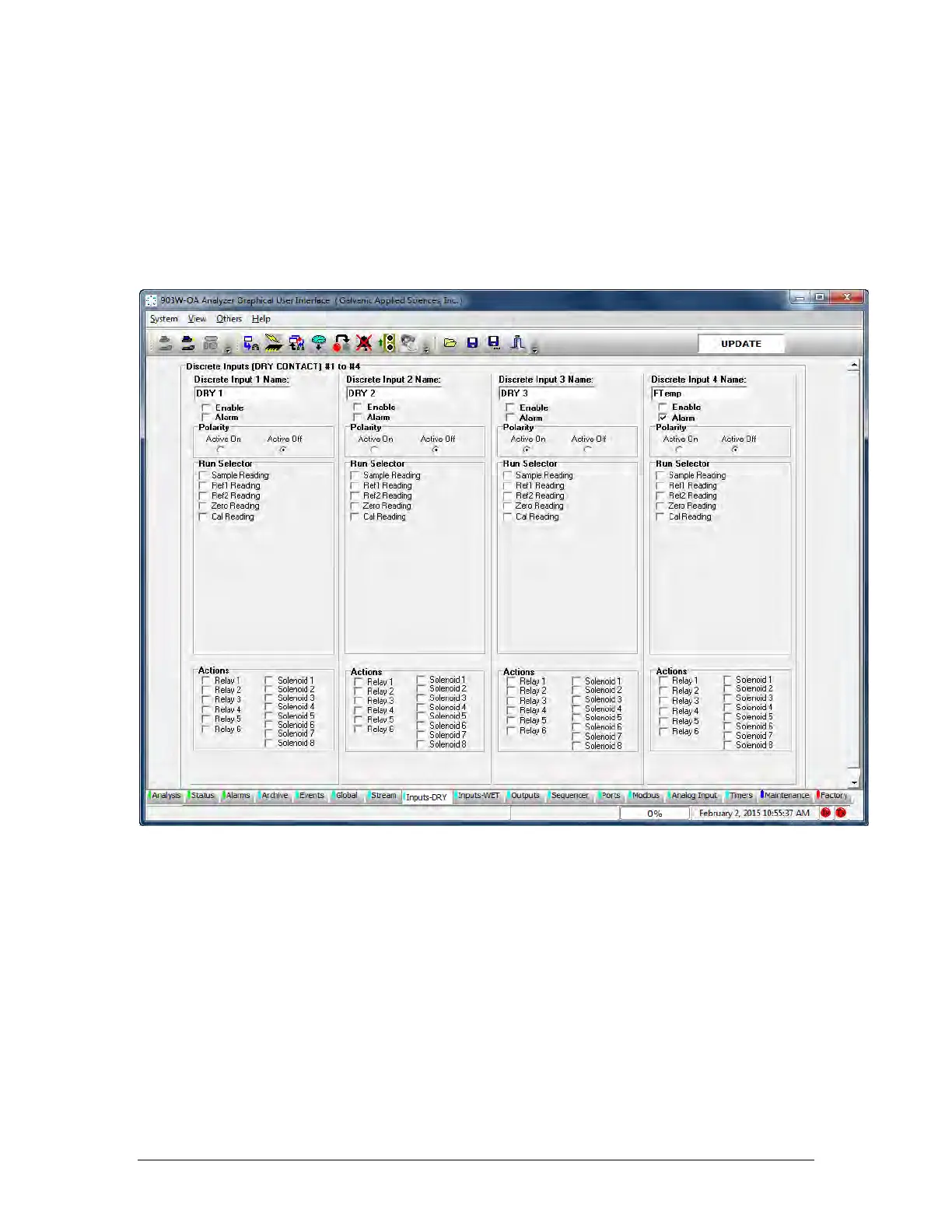

Figure 6-6: Input-Dry Tab
