Revision 1 129 9/10/2019
6.4.5 Modbus Tab
The Modbus tab (Figure 6-9) allows the user to set up the analyzer to output data in 3
varieties of MODBUS communication protocol - Enron, Modicon 16, and Modicon Floating
Point. As there are a large number of possible configurations for Modbus, and every user
may desire a slightly different configuration, this manual will only cover the basics of Modbus
configuration. If the user requires assistance in setting up a Modbus configuration, the
Service department at Galvanic Applied Sciences Inc. will assist in configuring the unit as
desired. A detailed discussion of the Modbus tab is presented in Section 5.16.

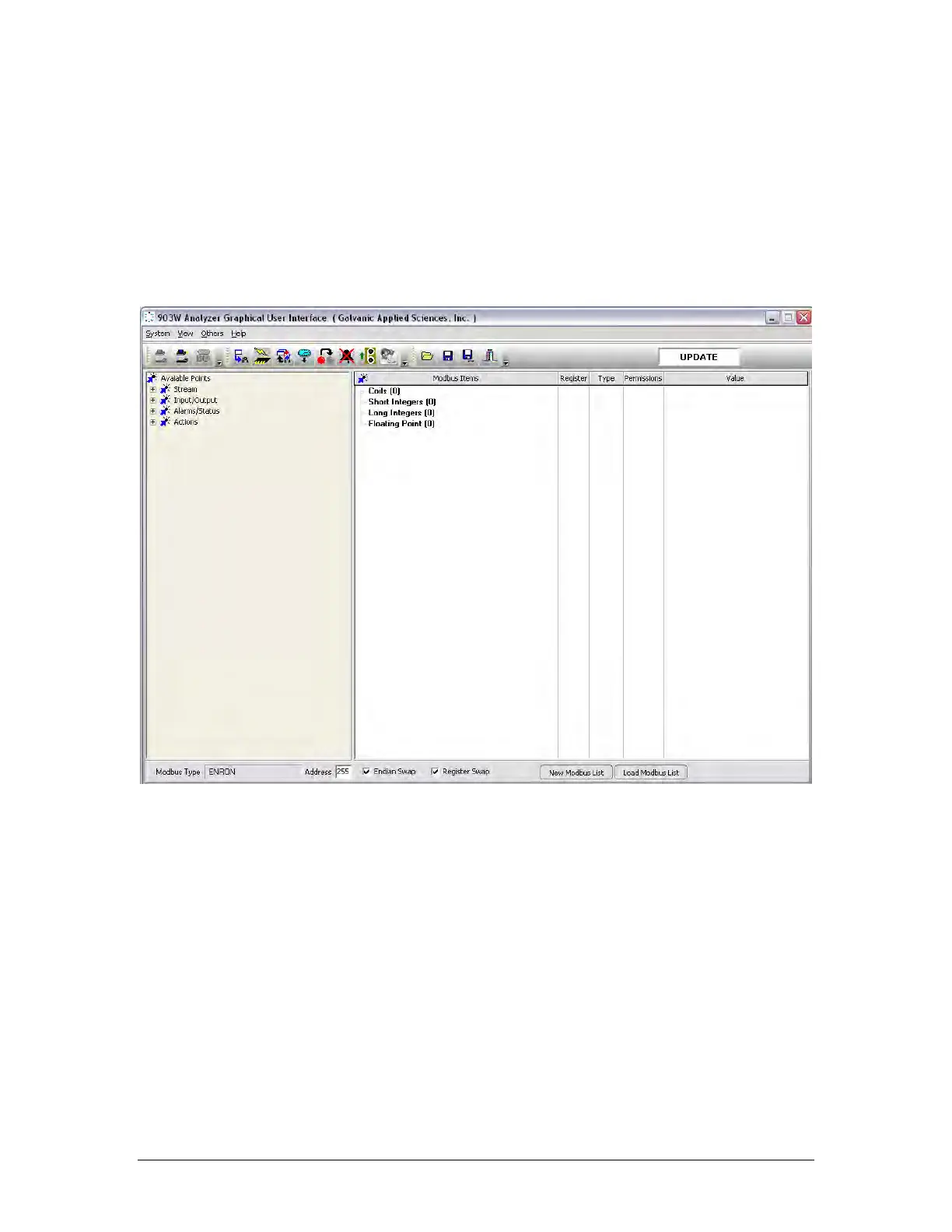

Figure 6-9: The Modbus Tab
