Revision 1 137 9/10/2019

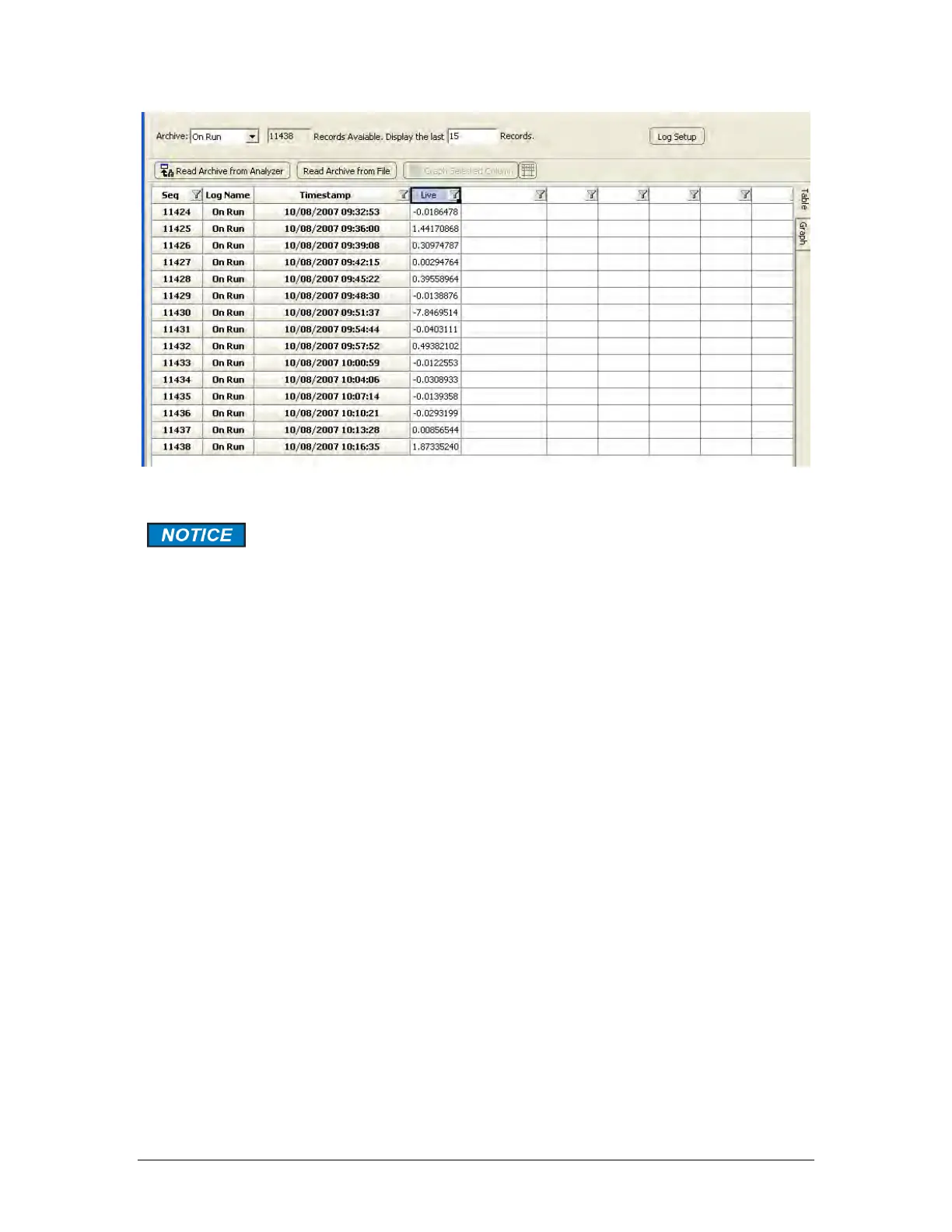

Figure 6-14: The Archive Tab
To extract data from the log, press the Read Archive from Analyzer button.
Alternatively, a previously saved archive record can be loaded by pressing
the Read Archive from File button. The archive on the analyzer is quite
large, so retrieving data from the archive can take several minutes,
especially if the PC is connected to the analyzer via a serial connection.
Once the data has been retrieved, the user will be prompted to choose a
directory and a file name for the archive data to be saved to.
If desired, the data can be viewed in a graphical format (Figure 6-15).
