Revision 1 163 9/10/2019

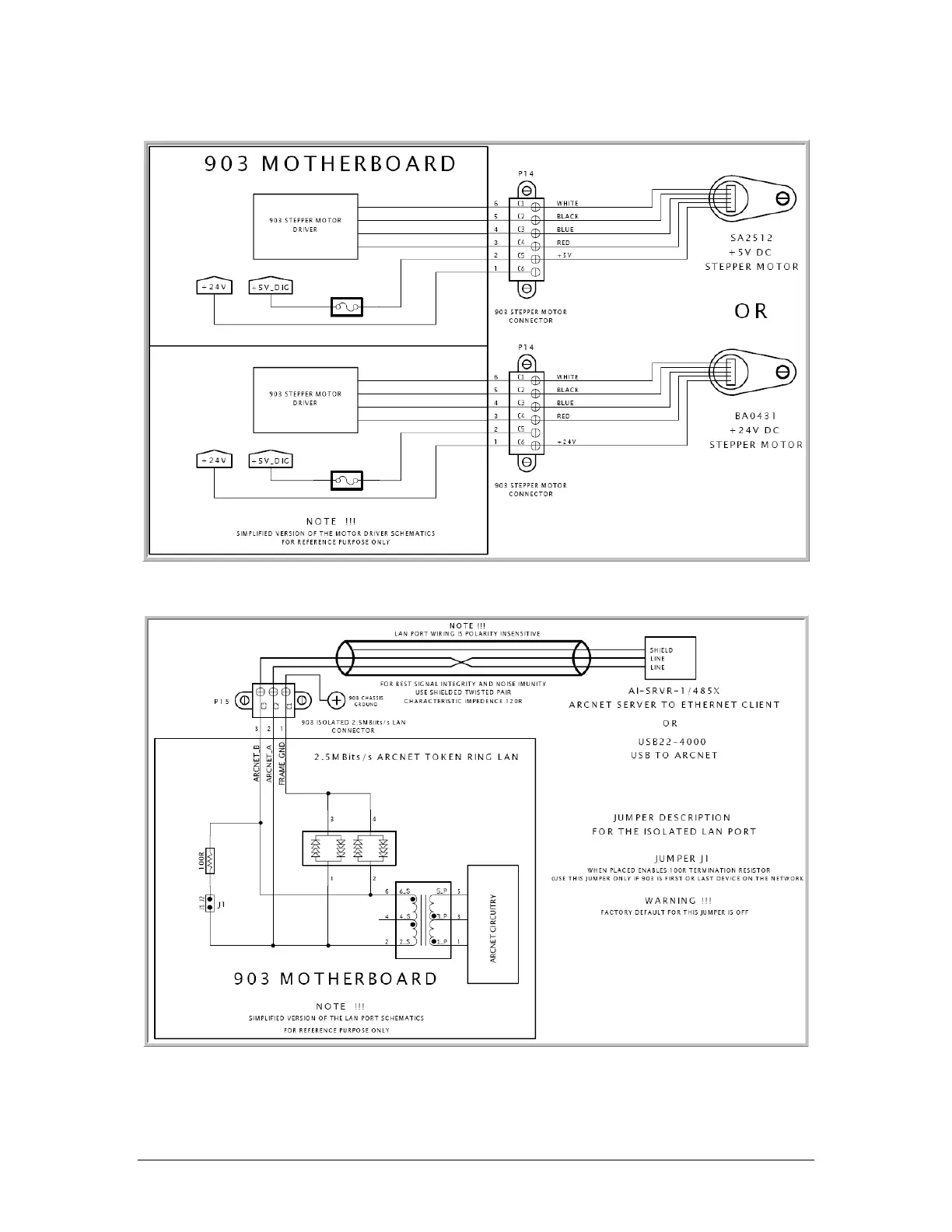

Figure 10-11: 5V and 24 V Stepper Motor Wiring Diagram
Figure 10-12: Isolated 2.5 Mbits / LAN Expansion Port
