Revision 1 29 9/10/2019

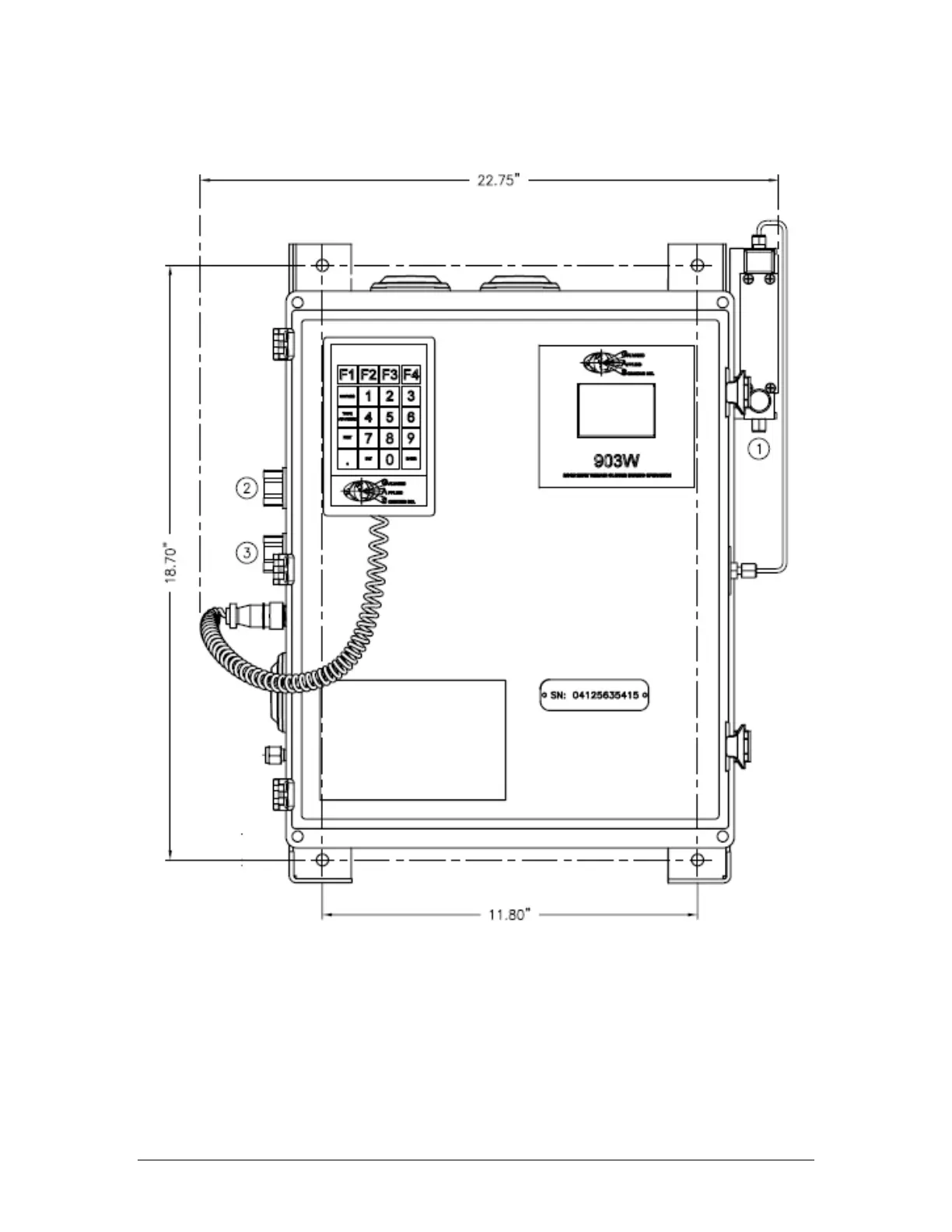

Figure 3-1: Analyzer Dimensions
If the system is mounted on a panel, allow approximately 15” on the left hand side of to allow
the removal of the tape cover on the side of the chassis, and to allow easy access for tape
installation and removal.
If the system is installed in a cabinet, allow 6” on the left side for the installation of a vent line.
