Revision 1 90 9/10/2019

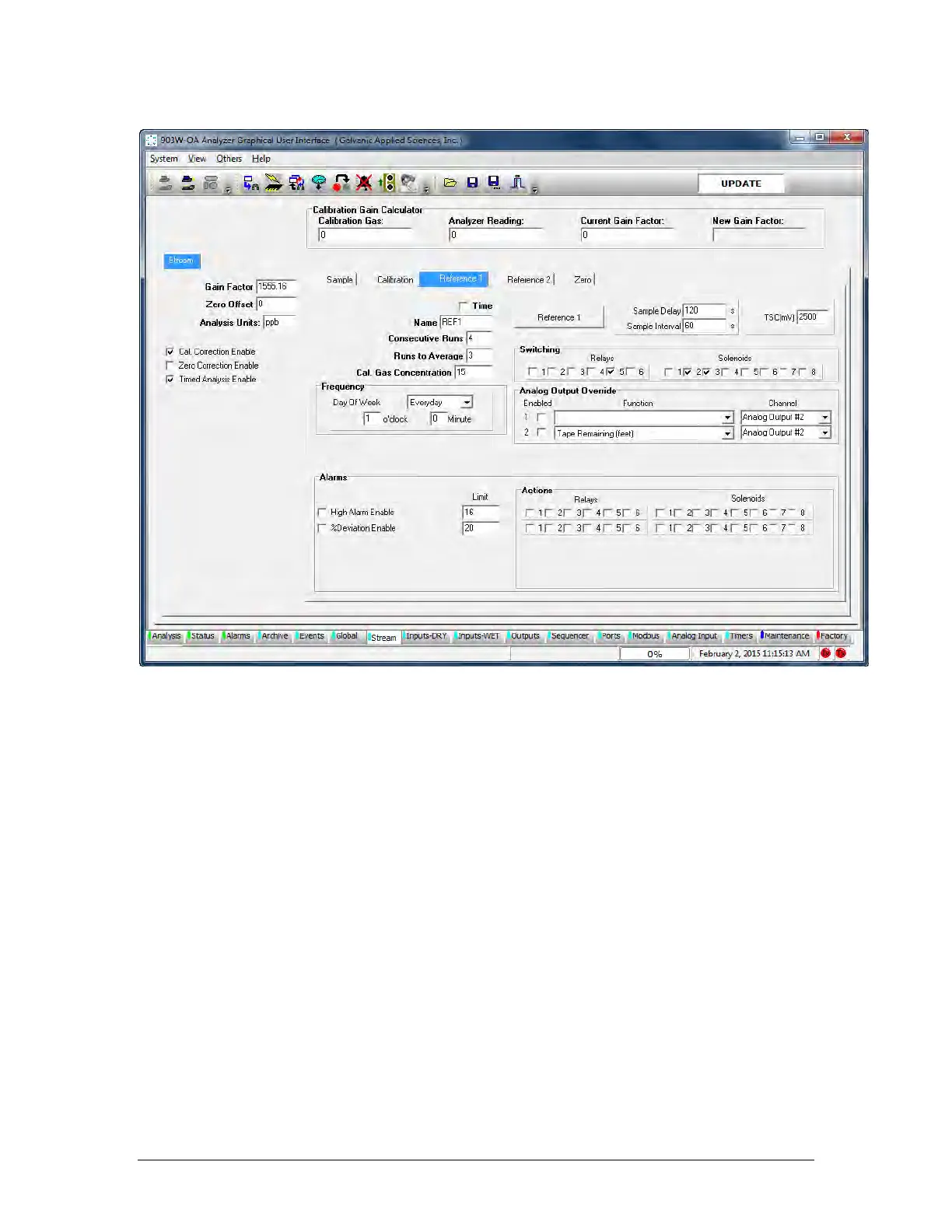

Figure 5-20: Stream Tab - Reference Tab
The Stream Number and Gas Type tabs are highlighted to identify that the stream/gas type
for which parameters are being edited (i.e. in Figure 5-19, parameters for Sample for stream
1 is being edited). The system described in Figure 5-19 and 5-20 includes screens which can
be edited.
The three parameters and three check boxes on the left of the tab are universal; when an
entry is made on one screen, the value/setting will be employed for all tabs for that stream.
All other parameters are independent parameters and can be different for the various gases
relative to that stream.
