190-01115-01 G3X™/G3X Touch™ Avionics Installation Manual
Rev. AV Page 12-7

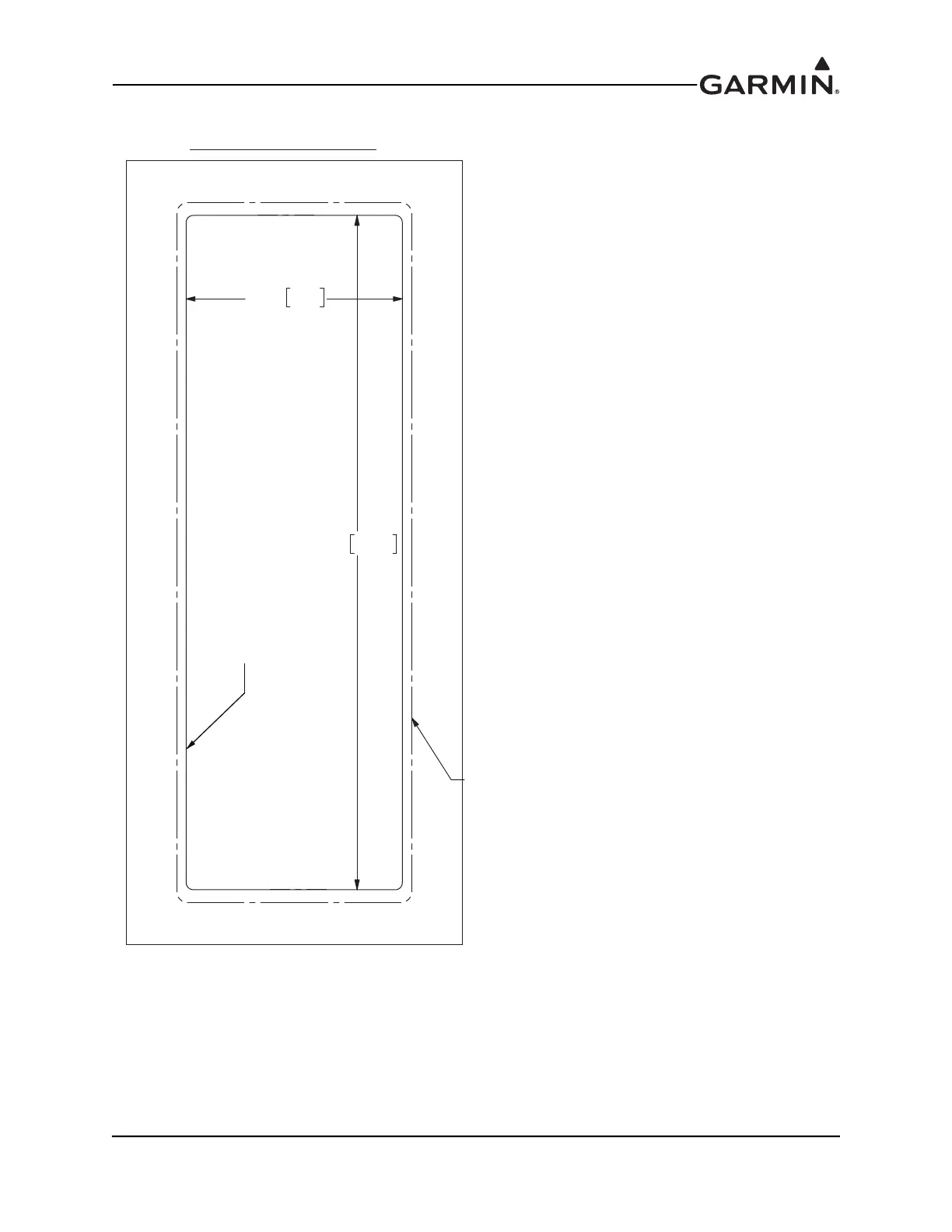

Figure 12-6 GMC 507 Panel Cutout Template (no installation rack)
NOTES:
1. DIMENSIONS: INCHES [mm]. METRIC VALUES ARE FOR REFERENCE ONLY.
2. TOLERANCES: INCH mm
.XX ±.02 .X ±0.5
.XXX ±.010 .XX ±0.25
IMPORTANT!
MAKE SURE THE PAGE SCALING SETTING IS SET TO NON
WHEN PRINTING THIS PAGE. VERIFY DIMENSIONS OF
PRINTED TEMPLATE ARE ACCURATE BEFORE CUTTING
PANEL.
BEZEL OUTLINE
(REF.)
GMC 507 PANEL CUTOUT
CUT OUT PANEL
TO INSIDE LINE
152.96.020
1.930
49.0
