190-01115-01 G3X™/G3X Touch™ Avionics Installation Manual

Rev. AV Page 12-9

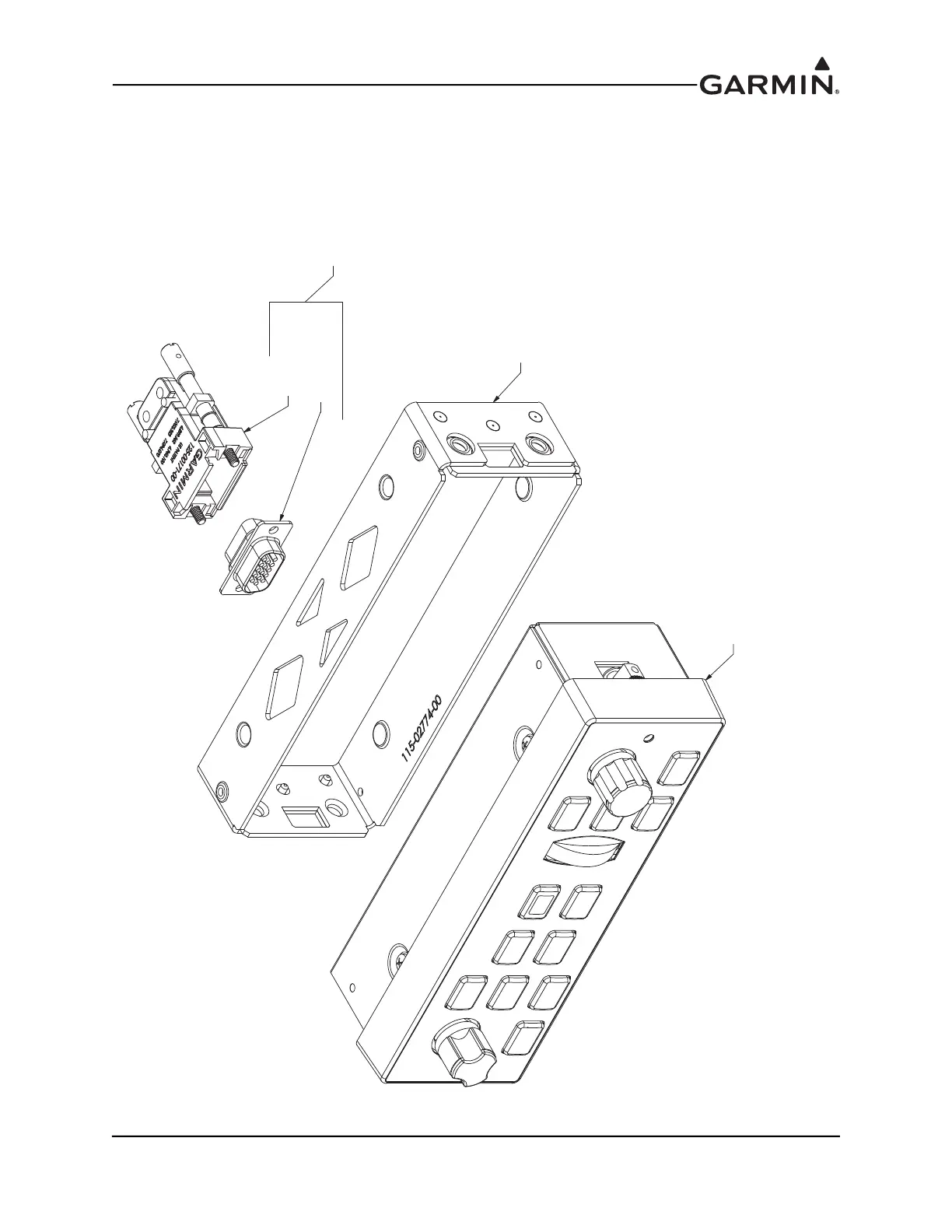

Figure 12-8 GMC 507 Installation Drawing with Installation Rack

GMC 507 INSTALL RACK

115-02774-00

011-01855-00

330-00366-15

CONNECTOR KIT

INCLUDED IN 011-01824-01

GMC 507 UNIT

011-04548-00 SHOWN

NOTES:

THE FASTENERS ARE ENGAGED AND DISENGAGED BY USE OF A 3/32" HEX TOOL.1.

TORQUE FASTENERS TO 20±2 IN-LBS ON INSTALLATION.2.

TO DISENGAGE THE UNIT, ROTATE FASTENERS CCW. DO NOT EXCEED 15 IN-LBS OF TORQUE.3.
