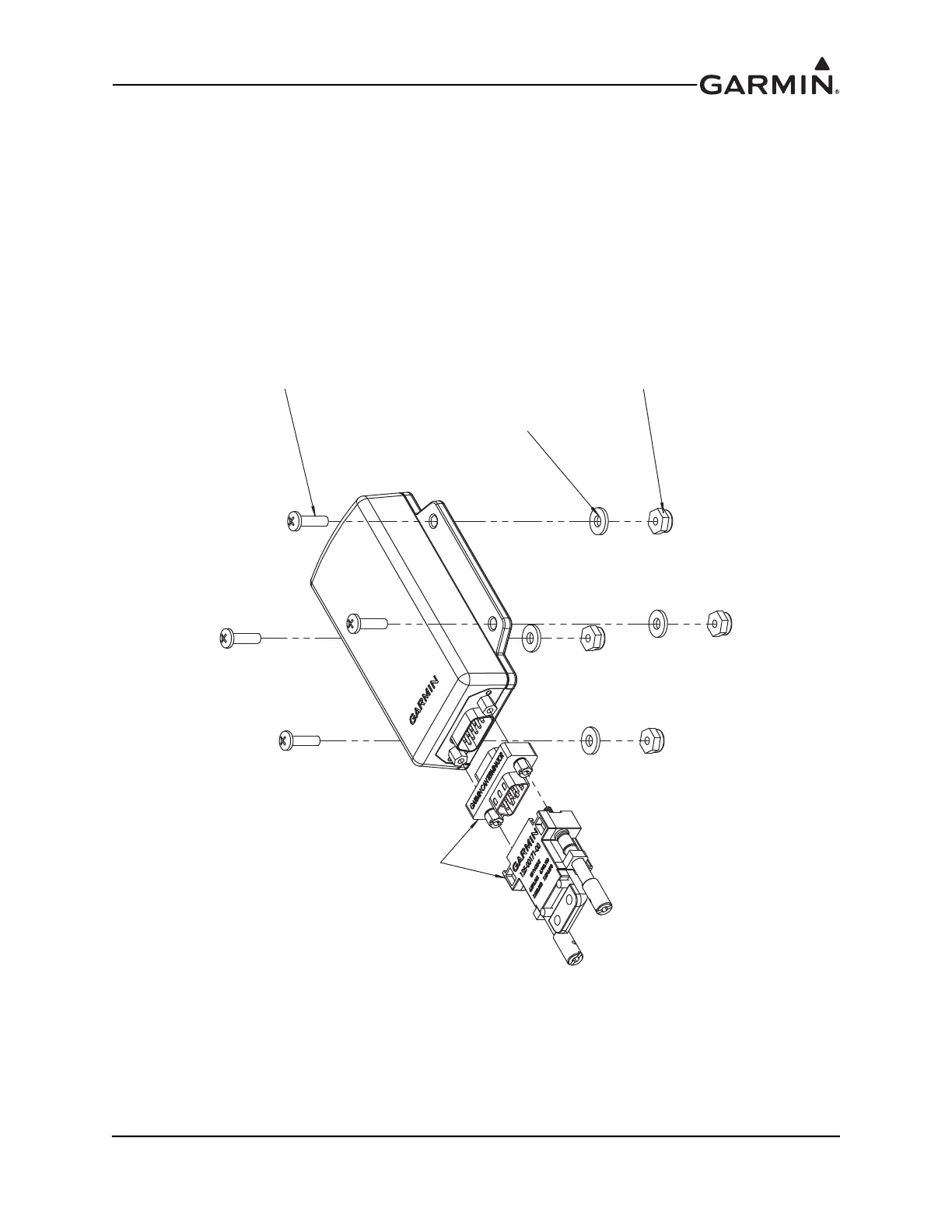

Figure 13-3 GMU 11 Installation Drawing
(211-60207-12 SUPPLIED WITH 011-04349-90 GMU 11 CONNECTOR KIT)
.500 THREAD LENGTH
GMU 11 CONNECTOR KIT) #6 FLAT WASHER, SS (212-00024-06 SUPPLIED WITH 011-04349-90
#6-32 PAN HEAD, SS/P SCREW, #6-32 NUT, HEX, NYL LOCKING, 316SS/P, (210-10008-08 SUPPLIED WITH 011-04349-90 GMU 11 CONNECTOR KIT)
9-PIN CONNECTOR,
WITH OPTIONAL CAN TERMINATOR
(011-03002-00 SUPPLIED WITH 011-04349-90
GMU 11 CONNECTOR KIT)
