190-01115-01 G3X™/G3X Touch™ Avionics Installation Manual
Rev. AV Page 13-7

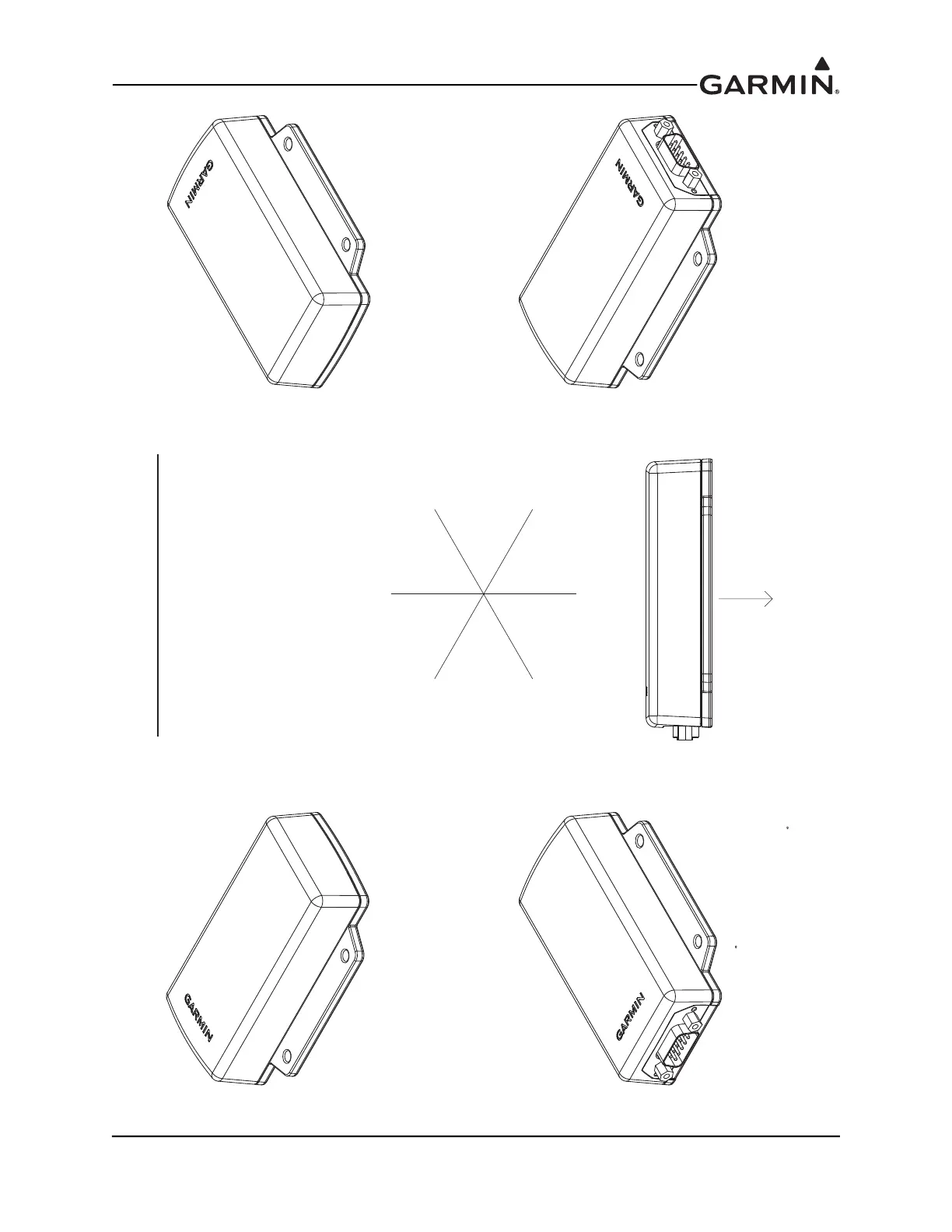

Figure 13-4 GMU 11 Orientation Drawing
CONNECTOR ALIGNED TOWARD PORT SIDE
SIDE VIEW, SEE NOTE 2
CONNECTOR ALIGNED TOWARD NOSE OF AIRCRAFT
CONNECTOR ALIGNED TOWARD STARBOARD SIDE
DOWN
UP
DRAWROFTROP
DRAOBRATSTFA
GMU 11 INSTALLATION ORIENTATIONS
TOWARD EARTH
NOTES:
ALIGN THE GMU 11 CONNECTOR TO WITHIN 0. 5 TO ANY OF THE 4 AIRCRAFT AXIS SHOWN.1.
THE GMU 11 MUST BE MOUNTED SUCH THAT THE BOTTOM OF THE UNIT IS FACING THE EARTH.2.
CONNECTOR ALIGNED 180
FROM NOSE OF AIRCRAFT
