Garmin G3X User Manual

190-01115-01 G3X™/G3X Touch™ Avionics Installation Manual
Rev. AV Page 16-21

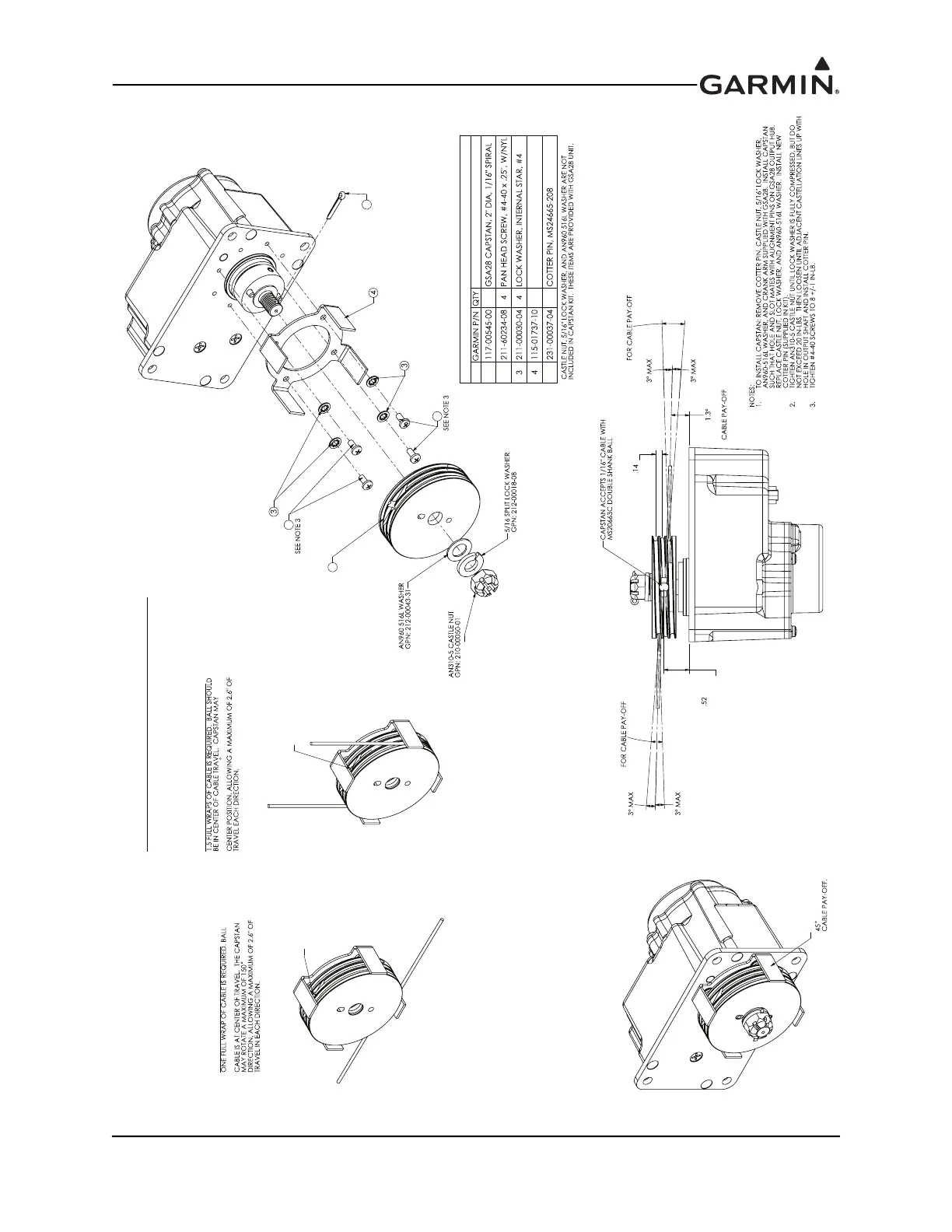

Figure 16-8.4 GSA 28 with Capstan Kit and Cable Instructions (011-02952-02)
SEE NOTE 2
GSA 28 WITH CAPSTAN KIT 011-02952-02
1
2
2
5
CABLE GUARD CAN BE ROTATED
TO ALLOW FOR ALTERNATE
BOTH CABLES EXITING CAPSTAN IN SAME DIRECTION
ROTATE A MAXIMUM OF 150
EITHER DIRECTION FROM
BALL
CABLE EXITING IN OPPOSITE DIRECTION
SHOULD BE IN CENTER OF CABLE WRAP WHEN
IN EITHER
BALL
FRONT OF
FLANGE TO
CENTER OF BALL
PITCH
NOMINAL
ACCEPTABLE RANGE
ACCEPTABLE RANG
ITEMS INCLUDED IN 011-02952-02
ITEM
DESCRIPTION
1 1 2
1
GSA28 CABLE GUARD
5 1

Garmin G3X Specifications

General

Display Type	LCD
Touchscreen	Yes
Power Input	10-32 VDC
Connectivity	Bluetooth, Wi-Fi (optional)
Interfaces	RS-232
GPS	Internal GPS/WAAS receiver
AHRS	Integrated AHRS
Air Data Computer	Integrated Air Data Computer
Autopilot Compatibility	Compatible with Garmin autopilots
Operating Temperature	-20°C to +55°C
Sunlight Readability	Sunlight readable display
Screen Size	10.6 inches
