190-01115-01 G3X™/G3X Touch™ Avionics Installation Manual

Rev. AV Page 16-22

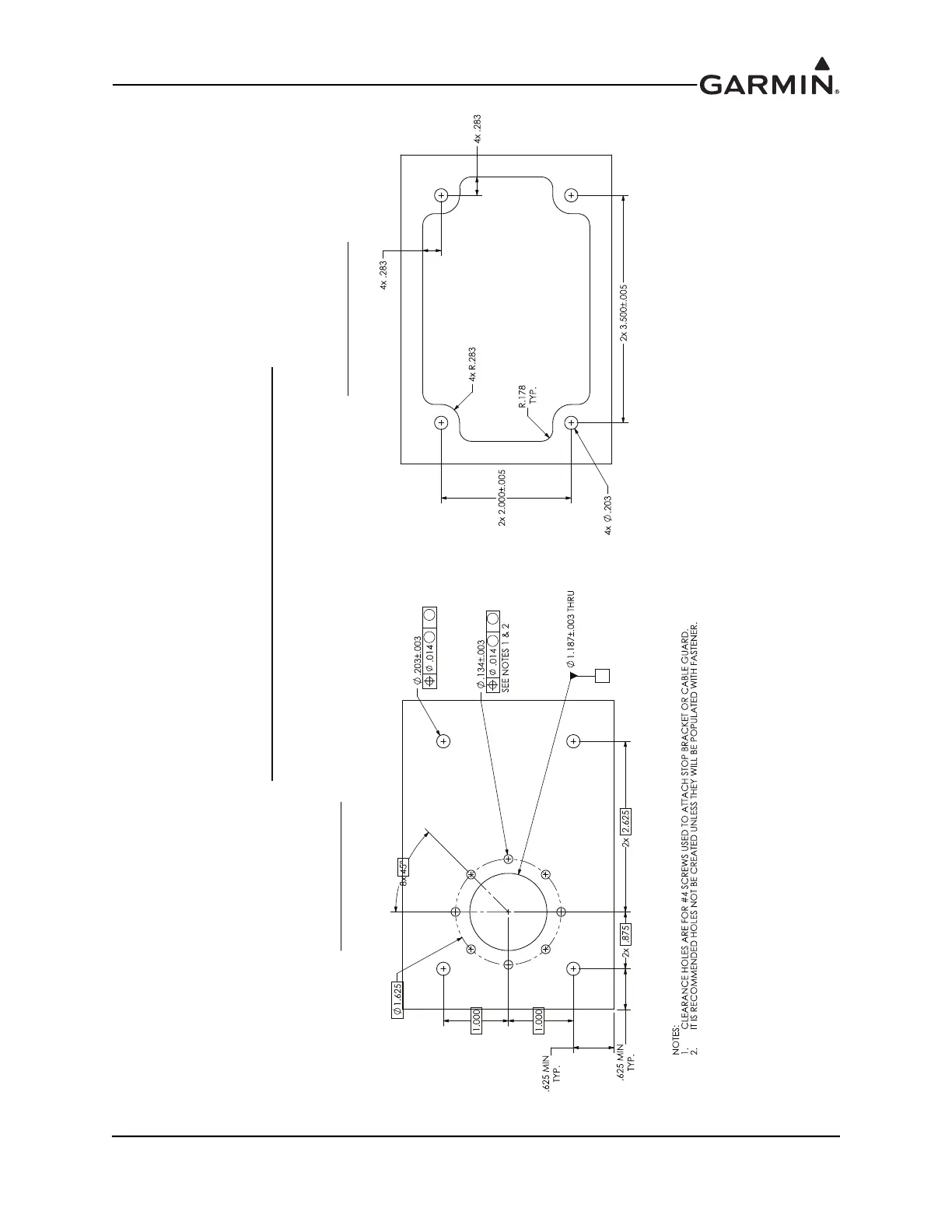

Figure 16-8.5 GSA 28 Recommended Bracket Cutout Dimensions

M

A

M

M

A

L

A

RECOMMENDED BRACKET CUTOUT DIMENSIONS

BACK PANEL MOUNTING

FRONT PANEL MOUNTING
