Rev. AV Page 16-31

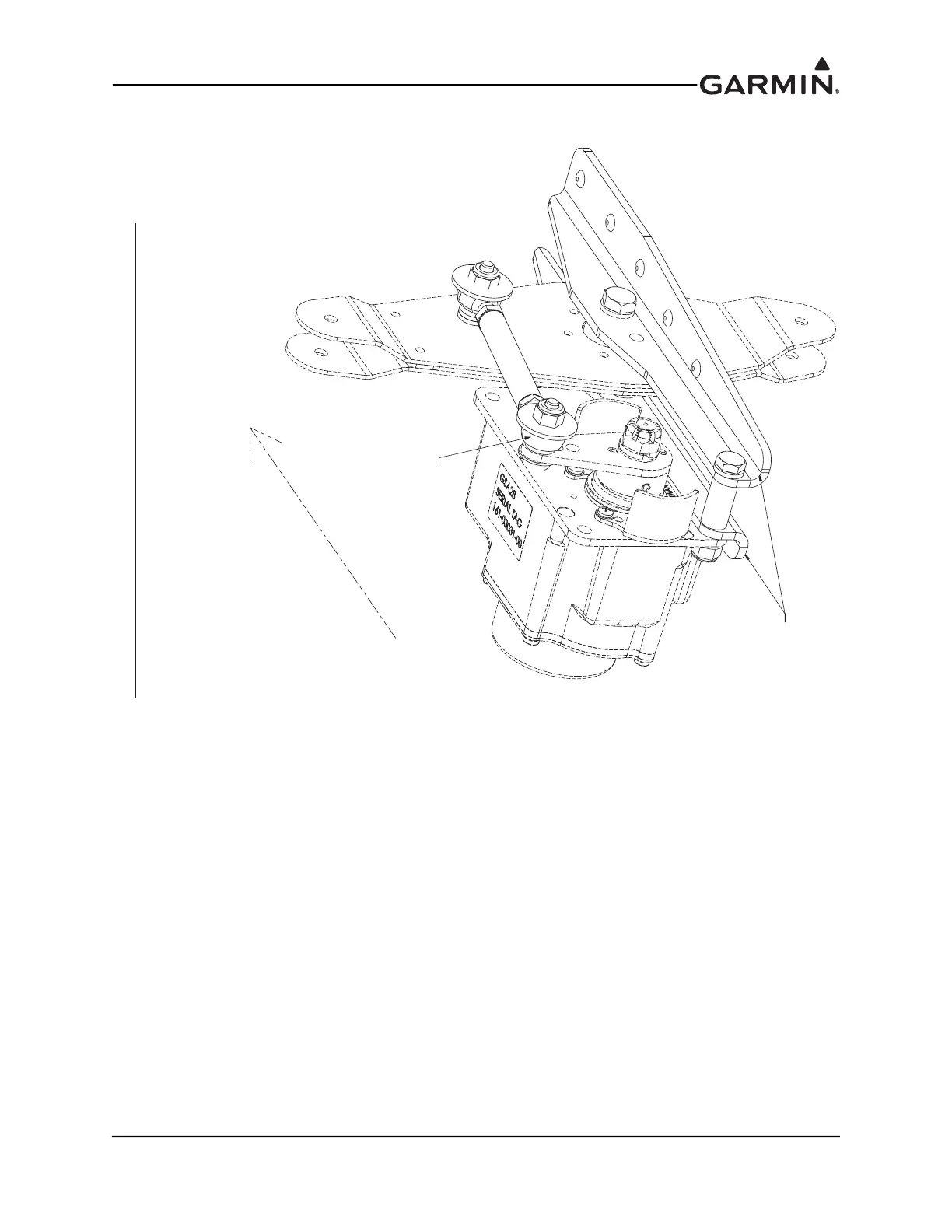

RV-4 AND PRE-SEPTEMBER 2006 RV-8 INSTALLATION
NOTES:
REMOVE EXISTING PITCH BELL CRANK BRACKETS AND REPLACE WITH SERVO 1.
MOUNTING BRACKETS (ITEMS 4 AND 9). MATCH-DRILL NEW BRACKETS TO
MATCH HOLE PATTERN ON ORIGINAL BRACKET. FASTEN TO AIRFRAME USING
ORIGINAL RIVET HOLES. FASTENERS USE FOR MOUNTING THE BRACKETS TO
THE AIRFRAME ARE NOT INCLUDED IN MOUNTING KIT.
F
O
R
W
A
R
D
SEE NOTE 1
PUSH ROD SHOWN
IN OUTERMOST SERVO
HOLE. SEE SHEET 2, NOTE 1.
