Rev. AV Page 16-32

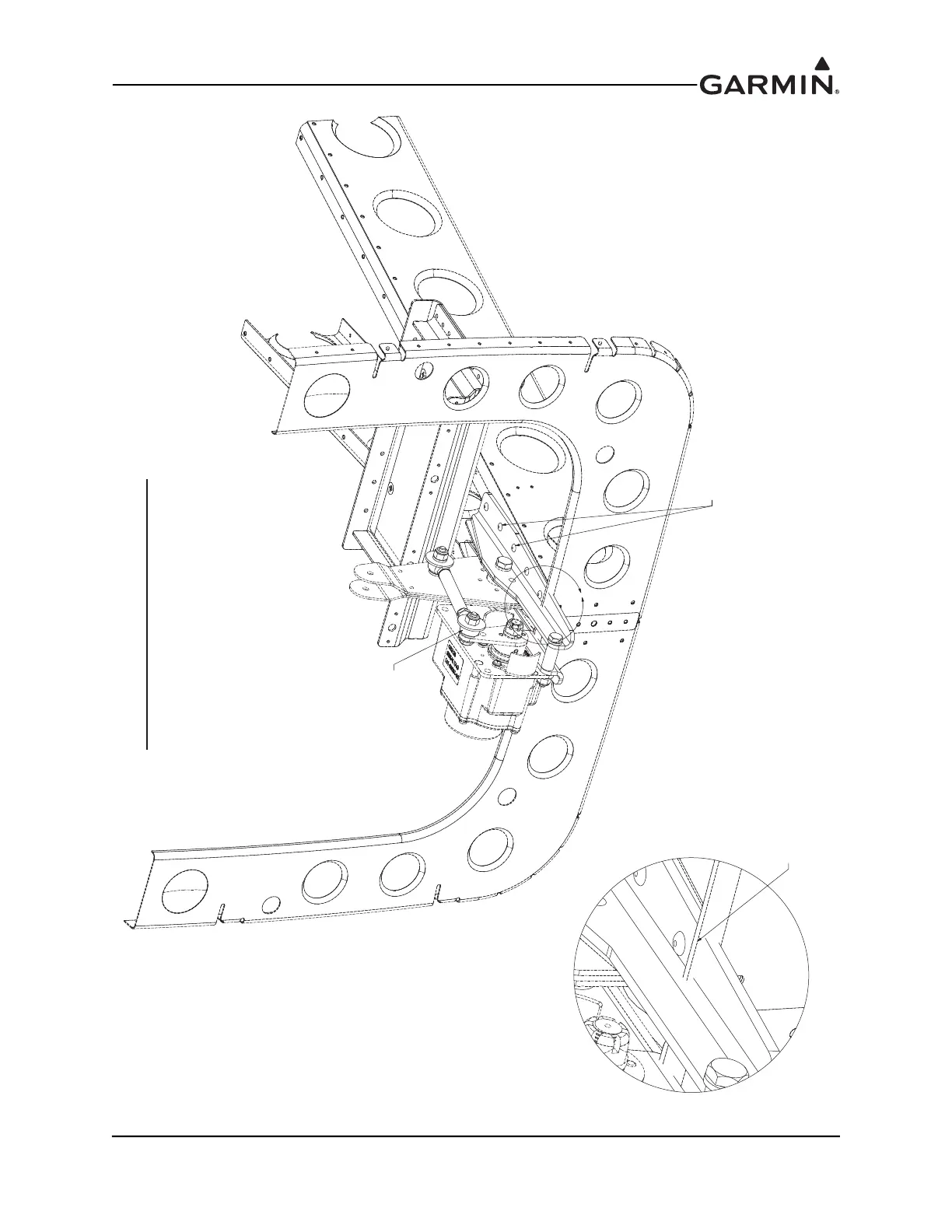

POST-SEPTEMBER 2006 RV-8 INSTALLATION
NOTES:
MATERIAL REMOVAL FROM BULKHEAD MAY BE NECESSARY1.
TO ALLOW BRACKETS TO SIT FLUSH AGAINST FLOOR RIBS.
ATTACH EACH MOUNTING BRACKETS (ITEMS 4 AND 9) TO FLOOR RIBS 2.
USING (5) AN470 4-X RIVETS SPACES APPROX 1". RIVETS ARE NOT INCLUDED
IN MOUNTING KIT.
SEE NOTE 2
PUSH ROD SHOWN
IN OUTERMOST SERVO
HOLE. SEE SHEET 2, NOTE 1.
A
DETAIL A
SCALE 2 : 1
SEE NOTE 1
