190-01115-01 G3X™/G3X Touch™ Avionics Installation Manual
Rev. AV Page 16-42

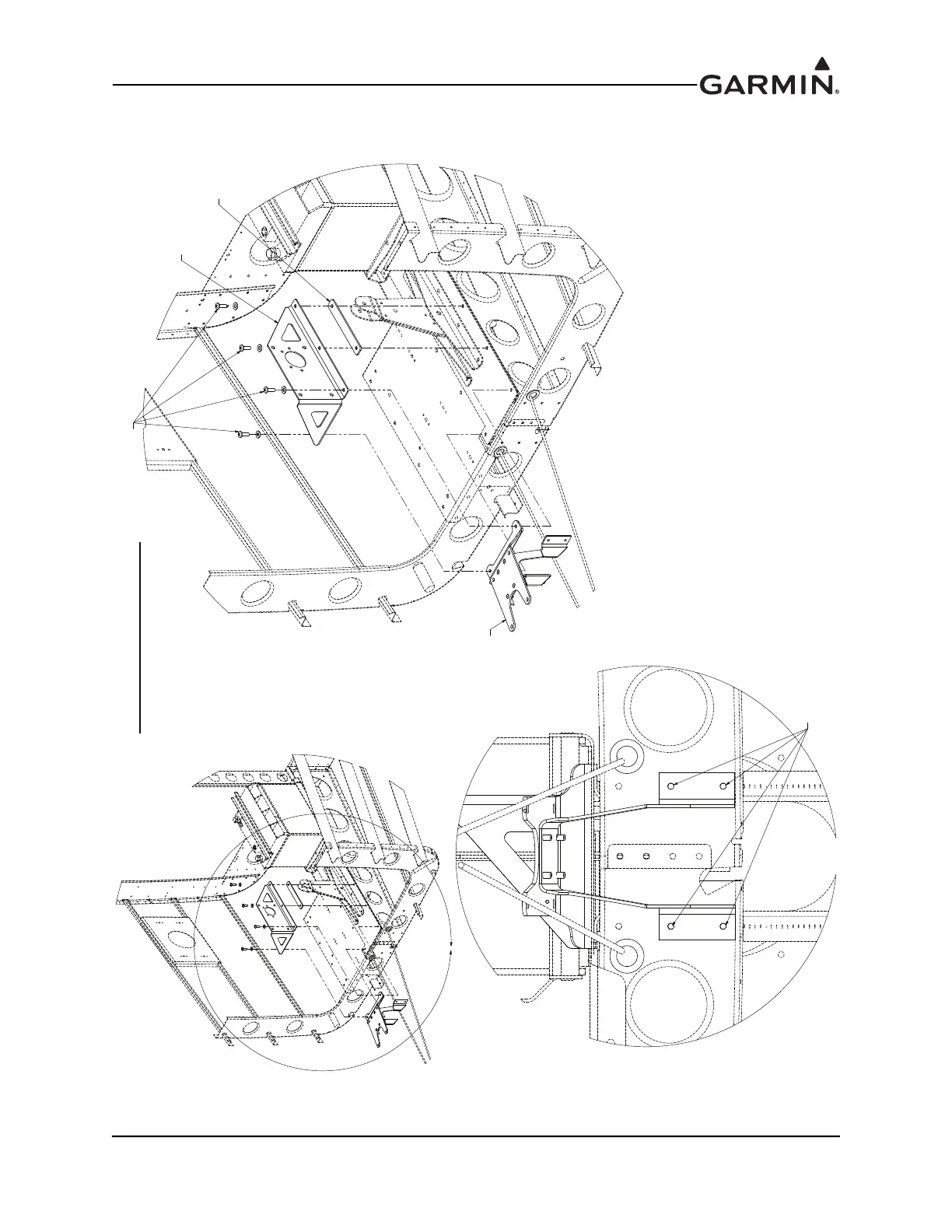

Figure 16-15.1 GSA 28 RV-10 Yaw Mounting Kit 011-02952-16 (page 2 of 3)
A
FASTEN TO AIRFRAME USING EXISTING RIVET HOLES (4 PLACES).
USE AN470 4-X RIVETS (NOT INCLUDED) OR EQUIVALENT.
DETAIL A
SCALE 2 : 5
GSA28 & RV-10 PITCH MOUNTING KIT
(REF 011-02952-15)
ITEM 15
SEE NOTE 2
ITEM 11
SEE NOTE 1
ITEM 16
SEE NOTE 3
BRACKET INSTALLATION
NOTES:
UPPER FLANGE OF YAW BRACKET (ITEM 11) FITS UNDER THE PITCH BRACKET.
1.
HOLES IN FLANGE SHOULD LINE UP WITH EXISTING HOLES IN PITCH BRACKET.
INSTALL SPACER (ITEM 15) UNDER PITCH BRACKET AS SHOWN. HOLES IN
2.
SPACER SHOULD LINE UP WITH EXISTING HOLES IN PITCH BRACKET.
ITEM 16 SCREWS ARE PROVIDED IN CASE EXISTING SCREWS FOR MOUNTING
3.
PITCH BRACKET ARE NOT LONG ENOUGH.
