190-01115-01 G3X™/G3X Touch™ Avionics Installation Manual
Rev. AV Page 20-29
External Non-structural Installation
Figure 20-30 is an example of an external, non-structural mounting of the antenna in a tube-and-fabric
aircraft. The antenna support bracket shown should be made of 2024-T3 Aluminum with a minimum
material thickness 0.032” and maximum distance between airframe tubes of 36”. The bracket is installed to
the airframe under the fabric, and the antenna is mounted externally to the bracket. The generic installation
of the (Section 20.7.1
) antenna is used, with the antenna support bracket as the mounting surface. Follow
the applicable gasketing and sealant instructions in Section 20.5.2
(Teardrop style) or Section 20.6.2
(ARINC 743 style).

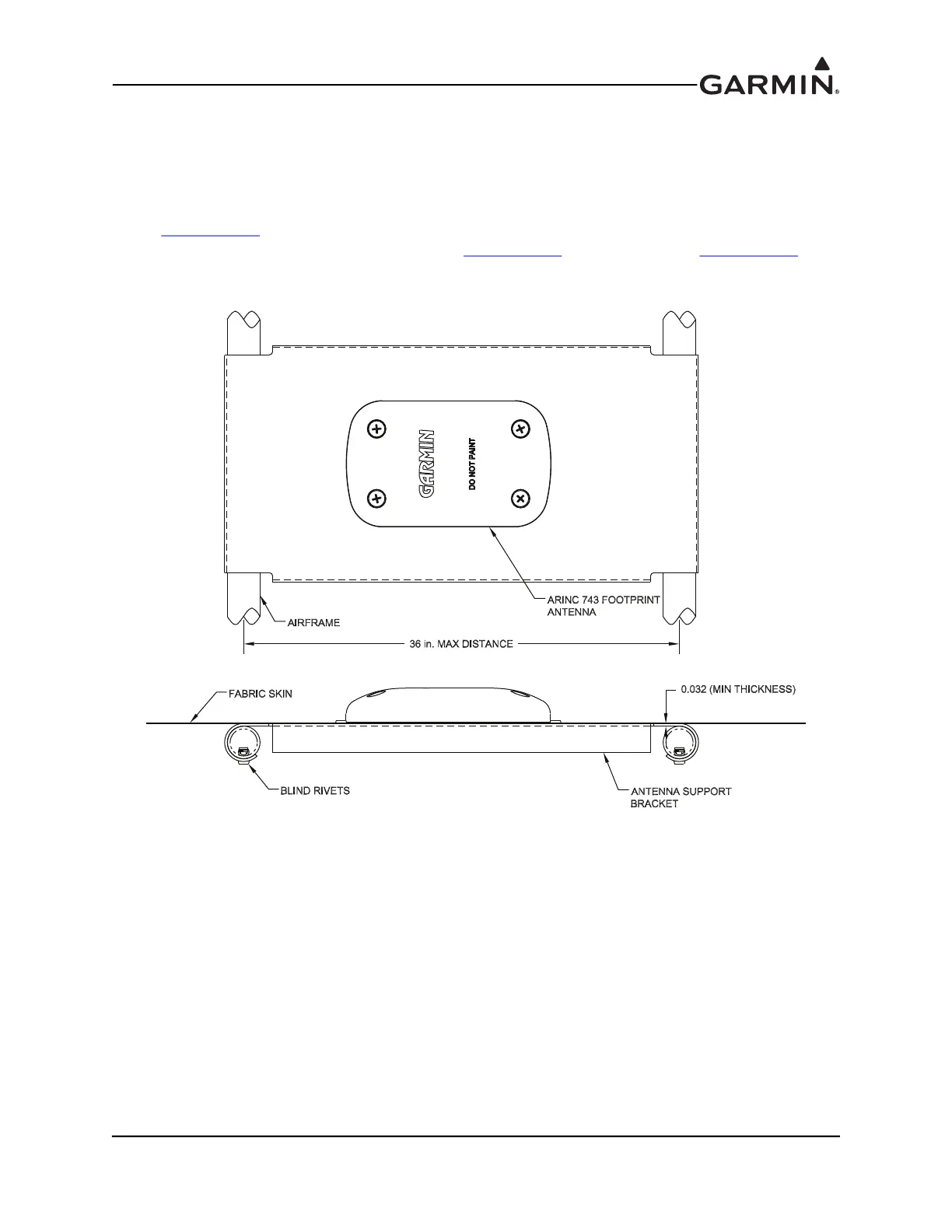

Figure 20-30 Example Non-structural Antenna Mounting On Airframe
